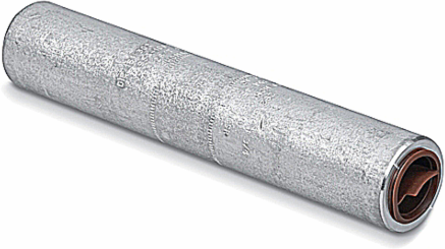

Blackburn AC 4/0-HM Aluminum Splice 4 Inch, Compression, Dual-Rated for Aluminum and Copper
- MPN: AC 4/0-HM
- UPC: 783786691777
- PPN: T-B-AC 4/0-HM
CAD
$58.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Straight Splices, concentric 4/0, compact 250, installing dies TX,71H,298,840,660,11A
Features
- Made of Aluminum for High Strength and High Conductivity.
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- All Splices Marked with Conductor Size and Die Reference for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications. All Tin-Plated Splices are UL Listed.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Solid Center Stop ensures proper cable insertion. Made from Aluminum which provides high strength and high conductivity.
- Standard
- ANSI C119.4
- Connection
- Compression/Crimp
- Number Of Conductors
- 2
- Finish
- Bare
IGCC4669 Wire or cable compression splice
TypeAluminum Splice
ApplicationDesigned for General Application
SizeLength 4 inches
Conductor Range36617
MaterialAluminum
InsulationNone
Packaging
- Outer Quantity
- 50
- Weight Uom
- 44 lbs. per 100
Outer Dimensions (inches)8x6.5x7
