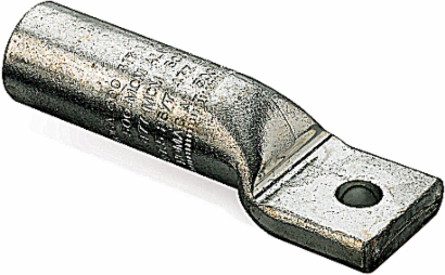

Blackburn AL 300-48 TN Aluminum One-Hole NEMA Lugs for 1/0-300 Stranded Conductors, 4 Inch Length
- MPN: AL 300-48 TN
- UPC: 783786693504
- PPN: T-B-AL 300-48 TN
CAD
$50.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Multi-Range Die-Less Lugs, Conductor range Al or Cu, 1/0-300 stranded, bolt size 1/2
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. |
| Standard | ANSI C119.4 |
| Conductor Range | 300 |
| Finish | Tin-Plated |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Aluminum One-Hole NEMA Lugs |
| Application | General purpose lugs for Aluminum and Copper terminations. |
| Size | Length 4 inches |
| Material | Aluminum |
Packaging
| Outer Quantity | 50 |
|---|---|
| Weight Uom | 19.5 lbs. per 100 |
| Outer Dimensions (inches) | 7.5x6x6.5 |
|---|
