Blackburn

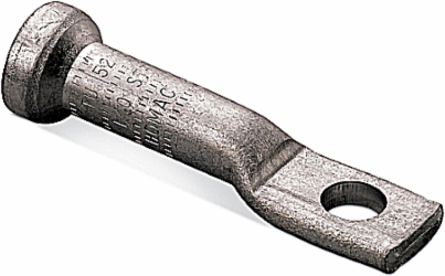

Blackburn RSG 10-48 Aluminum Shrouded One-Hole Lug, 3-5/8 Inch Length, for 1/0 Concentric & 2/0 Compact

Aluminum Shrouded One-Hole Lug, 3-5/8 Inch Length, for 1/0 Concentric & 2/0 Compact
  • MPN: RSG 10-48
  • UPC: 783786746477
  • PPN: T-B-RSG 10-48

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$66.93/ EA

Description

Aluminum Shrouded One-Hole Lugs - 5/8 compression die series, concentric 1/0, compact 2/0, shroud id .640, compression die size 5/8,8A,243,TU,52,BG

Features

  • Rainshield Protection for Insulated Cables Prevents Rainwater from Entering Cable
  • Entire Conductor Range Installed by Three Common Dies to Reduce Die Inventory.
  • Made from Aluminum for High Strength and Conductivity.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
  • Marked with Conductor Sizes and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121448 Wire or cable compression connector
Brand Name
Blackburn
Special Features
Rainshield protection for insulated cables prevent rainwater from entering cable. Entire conductor range installed with three common dies. Lessens your die inventory. Made from Aluminum for High Strength and High Conductivity. Dual-Rated fro use with Aluminum and Copper Conductors. Connector Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with Conductor Sizes and Die References.
Standard
ANSI C119.4
Conductor Range
1/0 Concentric, 2/0 Compact
IGCC4668 Wire or cable compression connector
TypeAluminum Shrouded One-Hole Lug
ApplicationRain Protection
SizeLength 3-5/8 inches long
MaterialAluminum

Packaging

Outer Quantity
100
Weight Uom
0.08 lbs. Each
Outer Dimensions (inches)7.5x6x6.5
