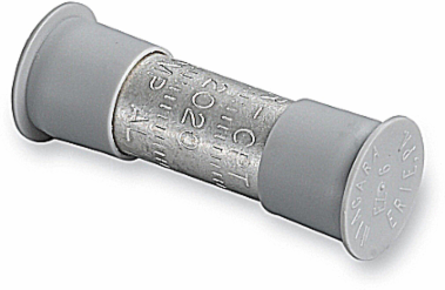

Blackburn SG 88 Aluminum Tin-Plated Straight Splice, 2 Inch Length, AL-CU Conductors, Compression
- MPN: SG 88
- UPC: 783786751709
- PPN: T-B-SG 88
CAD
$35.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Tin-Plated Straight Splices - 5/8 common die series, wire size A: 8, wire size B: 8, conductor A: AL-CU, conductor B: AL-CU
Features
- Made of Aluminum for High Strength and High Conductivity.
- Solid Center Stop Ensures Accurate Wire Positioning and Forces Oxide Inhibitor Over and Through Conductor Strands.
- Tin Plated to Resist Corrosion and Extend Shelf Life.
- Prefilled with Oxide Inhibitor to Improve Contact and Seal Out Moisture After Installation.
- Color-Coded End Caps Seal Splices from Contaminants.
- All Splices Marked with Conductor Sizes, Die References and Compression Locations for Easy Identification and Installation.
- Meets or Exceeds ANSI C119.4 Specifications.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Solid Center Stop assures accurate positioning and forces oxide inhibitor over and through conductor strands. Made from Aluminum which provides high strength and high conductivity. Prefilled with Oxide Inhibitor to Improve Contact and Seal out Moisture. Color Coded End Caps Seal Splices from Contaminants. All Splices marked with Conductor Sizes, Die References and Compression Locations for Easy Identification and Installation.
- Size
- Length 2 inches
- Conductor Range
- Side A - Aluminum/Copper #8, Side B Aluminum/Copper #8
- Material
- Aluminum
- Insulation
- None
IGCC4669 Wire or cable compression splice
TypeAluminum Tin-Plated Straight Splice
StandardANSI C119.4
ConnectionCompression/Crimp
Number Of Conductors2
FinishTin-Plated
Packaging
- Outer Quantity
- 100
- Weight Uom
- 0.07 lbs. Each
Outer Dimensions (inches)7.5x6x6.5
