Burndy

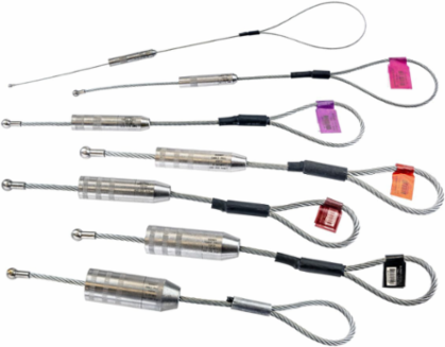

Burndy YCP34L41CTN Compression pulling grips, accommodating 500 KCMIL TO 400 KCMIL Copper and Aluminum Wire, 41" lanyard length.

Compression pulling grips, accommodating 500 KCMIL TO 400 KCMIL Copper and Aluminum Wire, 41" lanyard length.
  • MPN: YCP34L41CTN
  • UPC: 621945647213
  • PPN: BUR-501206740

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$70.88/ EA

Description

Compression pulling grips are wire range taking accommodating copper code, copper flex, and aluminum code wire. Each pulling grip comes comes in a unique lanyard length for wire staggering to prevent bunching during a pull. See sales drawing and or SOMI for maximum pull load requirements.

Features

  • Range-taking, only 7 compression pulling heads required to pull #8 AWG through 1000 kcmil wire
  • Easy to install with 444S or 644 Series of dieless installation tools
  • Parallel installation, pulling heads available in multiple lanyard lengths for staggering when pulling multiple wires
  • Knurl crimp bands on barrels clearly indicate the proper crimp zone location
  • Each lanyard has a protective sleeve for comfort and safety
  • UPC tag affixed to each part for ease of identification and ordering

Specifications

Specifications

Conductor - AL Str Size
500 KCMIL-400 KCMIL
Conductor - Copper Str Size
500 KCMIL-400 KCMIL
Country of Origin
CN
Product Type
CABLE PULL
Conductor Type
CODE/FLEX
Wire Size
500 KCMIL-400 KCMIL
Freight Class Code
16027000
Image Actual Or Representative
A
Material
STEEL
BOX SIZE
0.000x0.000x0.000 (in)
Carton - Number of Sub Packs
30
Carton - SCC-14 Next Lower Level Sub Pack
00621945647213
Case - SCC-14 Next Lower Level Sub Pack
30621945647214
Package Quantity
6 EA
Pallet Height
45.500 in
Pallet Weight
45.000 lb.
Conductor - Copper Str Compact Size500 KCMIL-400 KCMIL
Conductor - MaterialALUMINUM / COPPER
Description - SlangGrips
Conductor Size500 KCMIL-400 KCMIL
Connector TypePULLING HEAD
Class CodeB55
Harmonization Code7326200090
Sub Class CodeB55BJUF
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units30
Package - GTIN - Package30621945647214
Pallet - GTIN - Package70621945647212
Pallet Length48.000 in
Pallet Width40.000 in
