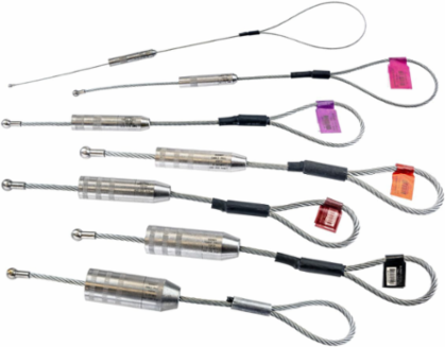

Burndy YCP39L13CTN Compression pulling grips, accommodating 750 KCMIL TO 550 KCMIL Copper and Aluminum Wire, 13" lanyard length.
- MPN: YCP39L13CTN
- UPC: 621945647275
- PPN: BUR-501206746
- UNSPSC: 39121722
CAD
$70.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Compression pulling grips are wire range taking accommodating copper code, copper flex, and aluminum code wire. Each pulling grip comes comes in a unique lanyard length for wire staggering to prevent bunching during a pull. See sales drawing and or SOMI for maximum pull load requirements.
Features
- Range-taking, only 7 compression pulling heads required to pull #8 AWG through 1000 kcmil wire
- Easy to install with 444S or 644 Series of dieless installation tools
- Parallel installation, pulling heads available in multiple lanyard lengths for staggering when pulling multiple wires
- Knurl crimp bands on barrels clearly indicate the proper crimp zone location
- Each lanyard has a protective sleeve for comfort and safety
- UPC tag affixed to each part for ease of identification and ordering
Specifications
Key Specifications
- Country of Origin
- China
- Conductor - Copper Str Compact Size
- 750 KCMIL-550 KCMIL
- Conductor - Material
- ALUMINUM / COPPER
- Product Type
- CABLE PULL
- Conductor Size
- 750 KCMIL-550 KCMIL
- Connector Type
- PULLING HEAD
- Class Code
- B55
- Harmonization Code
- 7326200090
- Sub Class Code
- B55BJUF
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 24
- Package - GTIN - Package
- 30621945647276
- Package Weight
- 0.000 lb.
- Pallet Height
- 45.500 in
- Pallet Weight
- 604.440 lb.
- NAICS Code
- 3359319104
Conductor - AL Str Size750 KCMIL-550 KCMIL
Conductor - Copper Str Size750 KCMIL-550 KCMIL
Description - SlangGrips
ApplicationCompression Cable Pull
Conductor TypeCODE/FLEX
Wire Size750 KCMIL-550 KCMIL
Freight Class Code16027000
Image Actual Or RepresentativeA
MaterialSTEEL
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs24
Carton - SCC-14 Next Lower Level Sub Pack00621945647275
Case - SCC-14 Next Lower Level Sub Pack30621945647276
Package Quantity6 EA
Pallet - GTIN - Package70621945647274
Pallet Length48.000 in
Pallet Width40.000 in
