PMA BVBV-M207 Flexible Conduits & Fittings
- MPN: BVBV-M207
- UPC: 786209948991
- PPN: T-B-BVBV-M207
CAD
$12.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

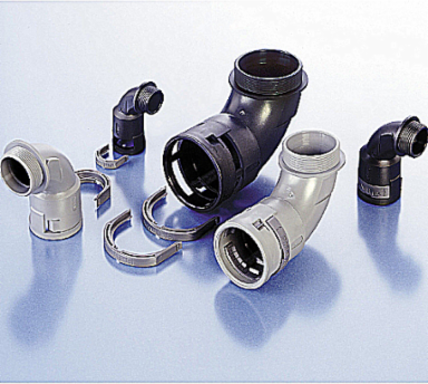

PMAFIX 90 Degree One-Piece Curved Black Elbow, Material - Polyamide 6, Thread Type - Metric, Thread Size - M20x1.5, Conduit Size NW - 17
Features
- Smooth elbow allows easy guidance through connector
- Easy threading of wires and cables
- Easy installation
- High pull-out strength
- Fits both conduit profiles - Fine (T) and coarse (G)
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39131717 Electrical conduit elbow |
|---|---|
| Brand Name | PMA |
| Application | For Use In Machine Building and Plant Construction Industries |
| Material | Polyamide/Nylon 6 |
| Size | M20 |
| Connection | 90 Degree |
| IGCC | 5746 Electrical conduit elbow |
|---|---|
| Type | Flexible Conduits & Fittings |
| Standard | CSA |
| Color | Black |
| Trade Size | NW17 |
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | M20 x 1.5 |
| Thread length | 11mm |
| Total height | 73mm |
| Material sealing | No sealing |
| Approved in combination with protective conduit CSA | Y |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Operating temperature | -40 - +105°C |
| Nominal diameter | 20mm |
|---|---|
| Model | 90°-Bend |
| Construction type | Internal thread |
| Thread type | Metric |
| Thread material | Polyamide |
| Total length | 47.5mm |
| Material | Polyamide |
| Colour | Black |
| Approved in combination with protective conduit UR | Y |
| Approved in combination with protective conduit Lloyd's Register | N |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x7.874 |
| Outer Quantity | 200 |
|---|---|
| Weight Uom | 0.04 lbs. Each |
