PMA BVWV-G000 Fittings for Nylon Flexible Conduits
- MPN: BVWV-G000
- UPC: 786209953711
- PPN: T-B-BVWV-G000
CAD
$12.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

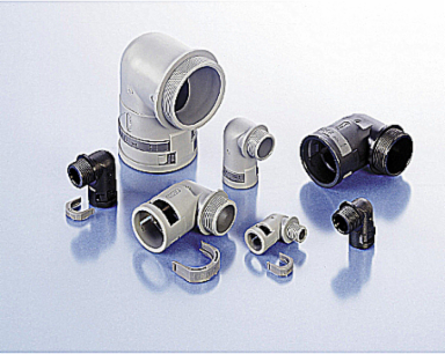

Black VW Connector 90 Degree Elbow, GAS Thread for IP66 - 1/4 Inch, Fits to Conduit Size NW/Metric 10/12, Thread Length 11
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39131717 Electrical conduit elbow |
|---|---|
| Brand Name | PMA |
| Application | For Cable Protection Systems In a Wide Range of Applications |
| Color | Black |
| Trade Size | NW48/50 Metric |
| IGCC | 5746 Electrical conduit elbow |
|---|---|
| Type | Fittings for Nylon Flexible Conduits |
| Material | High-Grade Specially Formulated Polyamide/Nylon 6 |
| Size | PG48 |
| Connection | 90 Degree |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x7.874 |
| Outer Quantity | 500 |
|---|---|
| Weight Uom | 0.02 lbs. Each |
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP66 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | Other |
| Thread length | 11mm |
| Total height | 39.5mm |
| Material sealing | No sealing |
| Approved in combination with protective conduit CSA | N |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Operating temperature | -40 - +105°C |
| Nominal diameter | 50mm |
|---|---|
| Model | 90°-elbow |
| Construction type | Internal thread |
| Thread type | Gas-thread |
| Thread material | Polyamide |
| Total length | 34mm |
| Material | Polyamide |
| Colour | Black |
| Approved in combination with protective conduit UR | N |
| Approved in combination with protective conduit Lloyd's Register | N |
