PMA CUSG-23S.31 Medium Wall Conduit
- MPN: CUSG-23S.31
- UPC: 786209954459
- PPN: T-B-CUSG-23S.31
CAD
$517.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

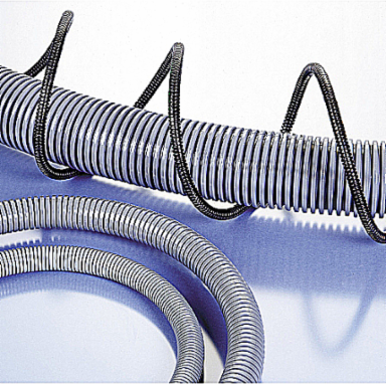

Coarse Profile Medium Wall Very Flexible Gray Conduit, (CUS) Material - Polyamide 6, Conduit Size NW - 23, 31 Meters
Features
- Cost-effective
- Very good flexibility
- Good impact strength, also at low temperatures and dry conditions
- Self-extinguishing, free of halogens and cadmium
- Renewable Energy
- Electrical Installations
Specifications
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Nominal size in inch | 3/4 inch |
| Inner diameter | 21.9mm |
| Compressive strength | 150N |
| Fire resistance in accordance with UL94 | V2 |
| Colour | Grey |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | N |
| Approved according to Lloyd's Register TA | N |
| Approved according to DIN 5510 | N |
| Nominal diameter | 25mm |
|---|---|
| Outer diameter | 28.5mm |
| Material | Polyamide 6 |
| Operating temperature | -40 - +105°C |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | Y |
| Approved according to LUL/British Standard | N |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 47.244x31.496x29.528 |
| Outer Quantity | 12 |
|---|---|
| Weight Uom | 0.08 lbs. Each |
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Machine |
| Trade Size | NW23 |
| Flexibility | Very Flexible |
| Color | Gray |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Medium Wall Conduit |
| Standard | cULus |
| Length | 31 m |
| Material | Polyamide/Nylon 6 |
