PMA PCLG-23B.30 Medium Wall Conduit
- MPN: PCLG-23B.30
- UPC: 786209966773
- PPN: T-B-PCLG-23B.30
CAD
$524.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

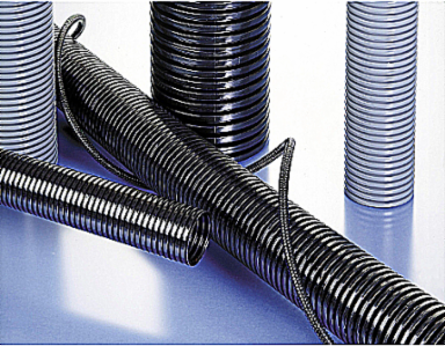

Coarse Profile Medium Wall Very Flexible Black Conduit, (PCL) Material - Polyamide 6, Conduit Size NW - 23, 30 Meters
Features
- Very good flexibility
- Good mechanical strength at low temperatures and dry conditions
- Self-extinguishing
- Free from halogens and cadmium
- Machine building, installation and vehicle building applications
Specifications
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Dimensions (inches) | 47.244x31.496x29.528 |
| Outer Quantity | 12 |
|---|---|
| Weight Uom | 0.07 lbs. Each |
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 28.5mm |
| Material | Polyamide 6 |
| Operating temperature | -50 - +105°C |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Halogen free | Y |
| Approved according to UR | Y |
| Approved according to LUL/British Standard | Y |
| Approved according to UTAC | N |
| Approved according to NF F 16-101 | N |
| Nominal diameter | 25mm |
|---|---|
| Inner diameter | 21.9mm |
| Compressive strength | 150N |
| Fire resistance in accordance with UL94 | V2 |
| Colour | Black |
| Bending strength | Flexible |
| Closable (two-part) | N |
| Approved according to DIN EN 61386-23 | N |
| Approved according to CSA | Y |
| Approved according to Lloyd's Register TA | Y |
| Approved according to DIN 5510 | N |
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | PMA |
| Application | Machine |
| Trade Size | NW23 |
| Length | 30 m |
| Material | Polyamide/Nylon 6 |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Medium Wall Conduit |
| Standard | CSA |
| Outside Diameter | 1.12 Inch |
| Flexibility | Very Flexible |
| Color | Black |
