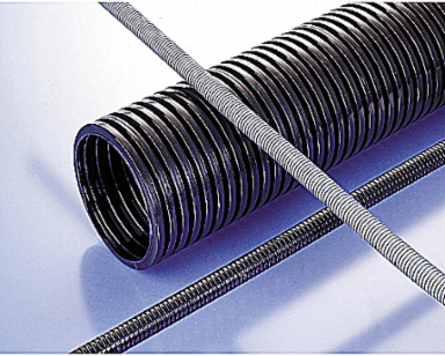

PMA CYLG-23S.50 Medium Wall Conduit
PMA CYLG-23S.50 Medium Wall Conduit
- MPN: CYLG-23S.50
- PPN: T-B-CYLG-23S.50
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$582.98/ EA
Description
Coarse Profile Medium Wall Very Flexible Gray Conduit, (CYL) Material - Polyamide 6, Conduit Size NW - 23, 50 Meters
Features
- Very good flexibility
- Good impact strength, also at low temperatures and dry conditions
- Self-extinguishing, free from halogens and cadmium
- Installation Industries
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 28.5mm
- Material
- Polyamide 6
- Fire resistance in accordance with UL94
- V2
- Colour
- Grey
- Bending strength
- Flexible
- Closable (two-part)
- N
- Approved according to DIN EN 61386-23
- N
- Approved according to CSA
- Y
- Approved according to Lloyd's Register TA
- Y
- Approved according to DIN 5510
- N
Nominal diameter25mm
Inner diameter21.9mm
Operating temperature-40 - +105°C
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedN
Halogen freeY
Approved according to URY
Approved according to LUL/British StandardY
Approved according to UTACN
Approved according to NF F 16-101N
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- PMA
- Application
- Machine
- Trade Size
- NW23
- Length
- 50 m
- Material
- Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeMedium Wall Conduit
StandardCSA
Outside Diameter1.12 Inch
FlexibilityVery Flexible
ColorGray
Packaging
- Inner Quantity
- 1
- Outer Dimensions (inches)
- 47.244x31.496x29.528
Outer Quantity10
Weight Uom0.07 lbs. Each
