Adaptaflex AL21/PG16/S45/BL Conduit Fitting with PG Threads
- MPN: AL21/PG16/S45/BL
- UPC: 786210279879
- PPN: T-B-AL21/PG16/S45/BL
CAD
$32.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

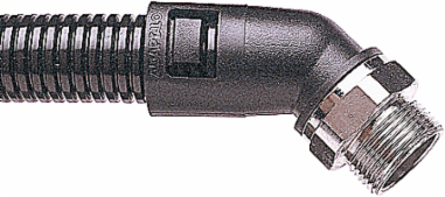

45 Degree Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 21mm, PG16 Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread, Black
Specifications
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 0.1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP66 |
| Revolving thread | Y |
| Type of connection | Snap connection |
| Thread connection size | PG16 |
| Material | Polyamide |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
| Nominal diameter | 21mm |
|---|---|
| Model | 45°-elbow |
| Construction type | External thread |
| Thread type | Other |
| Thread length | 11.2mm |
| Colour | Black |
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | 45 Degree |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with PG Threads |
| Size | NC 21mm |
| Color | Black |
| Cable Entry | PG16 Thread |
