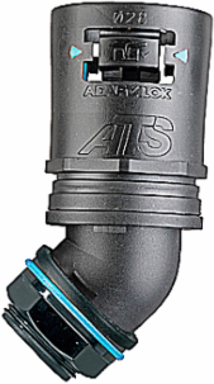

Adaptaflex AT28/075/45/BLB Conduit Fitting with NPT Threads
- MPN: AT28/075/45/BLB
- UPC: 786210283159
- PPN: T-B-AT28/075/45/BLB
CAD
$39.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adaptalok ATS, 45 Degree Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 28mm, 3/4 Inch NPT Thread, Polyamide (Nylon) 66/TPE, Black with Blue Elastomer
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 45 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with NPT Threads
SizeNC 28mm
ColorBlack/Blue Elastomer
Cable Entry3/4 Inch NPT Thread
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.07 lbs. Each
Outer Dimensions (inches)1x1x1
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- Other
- Total height
- 75.5mm
- Material sealing
- TPE
- Approved in combination with protective conduit UR
- N
Nominal diameter28mm
Model45°-elbow
Construction typeExternal thread
Thread typeNPT
Thread length13.5mm
MaterialPolyamide
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
