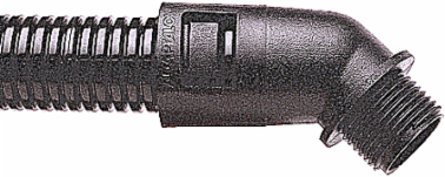

Adaptaflex AL34/PG29/45/BL Conduit Fitting with PG Threads
- MPN: AL34/PG29/45/BL
- UPC: 786210280738
- PPN: T-B-AL34/PG29/45/BL
CAD
$25.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
45 Degree Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 34mm, PG29 Thread, Polyamide (Nylon) 66, Black
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | 45 Degree |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with PG Threads |
| Size | NC 34mm |
| Color | Black |
| Cable Entry | PG29 Thread |
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP66 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | PG29 |
| Material | Polyamide |
| Approved in combination with protective conduit UR | Y |
| Nominal diameter | 34mm |
|---|---|
| Model | 45°-elbow |
| Construction type | External thread |
| Thread type | Other |
| Thread length | 12.2mm |
| Colour | Black |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 0.06 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
