Adaptaflex AL16/U119/C90/000620 Conduit Fitting with UNEF Threads
- MPN: AL16/U119/C90/000620
- UPC: 786210279565
- PPN: T-B-AL16/U119/C90/000620
CAD
$81.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

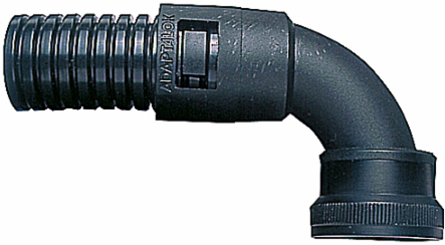

Connector Conduit Fitting, 90 Degree Elbow, Conduit Size 16, 1-3/16 Inch Connector UNEF Thread, Swivel Internal Thread, Black
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | Y |
| Type of connection | Snap connection |
| Thread connection size | Other |
| Material | Polyamide |
| Approved in combination with protective conduit UR | N |
| Nominal diameter | 16mm |
|---|---|
| Model | 90°-elbow |
| Construction type | Internal thread |
| Thread type | UNEF |
| Thread length | 9.5mm |
| Colour | Black |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 0.15 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | 90 Degree |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with UNEF Threads |
| Size | NC 16mm |
| Color | Black |
| Cable Entry | 1-3/16 Inch UNEF Thread |
