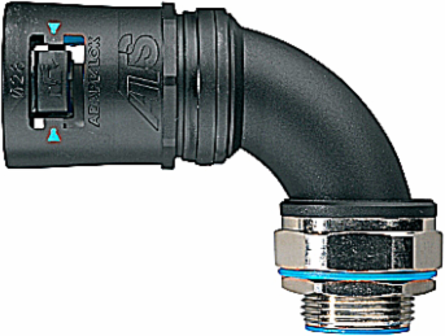

Adaptaflex AT16/M16/CS90/BLB 90 Degree Conduit Fitting, M16 Thread, 16mm Size, IP68, Nylon 66
- MPN: AT16/M16/CS90/BLB
- UPC: 786210281827
- PPN: T-B-AT16/M16/CS90/BLB
CAD
$47.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Adaptalok ATS, 90 Degree Conduit Fitting, Swivel External Male Thread, Nominal Conduit Size 16mm, M16 Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE, Black with Blue Elastomer
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | Y |
| Type of connection | Snap connection |
| Thread connection size | M16 x 1.5 |
| Material | Polyamide |
| Approved in combination with protective conduit UR | N |
| Nominal diameter | 16mm |
|---|---|
| Model | 90°-elbow |
| Construction type | External thread |
| Thread type | Metric |
| Thread length | 12mm |
| Colour | Black |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 0.08 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | 90 Degree |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with Metric Threads |
| Size | NC 16mm |
| Color | Black/Blue Elastomer |
| Cable Entry | M16 Thread |
