PMA NKNZ-M253/P6 Connectors-Straight
- MPN: NKNZ-M253/P6
- UPC: 786210059129
- PPN: T-B-NKNZ-M253/P6
CAD
$100.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

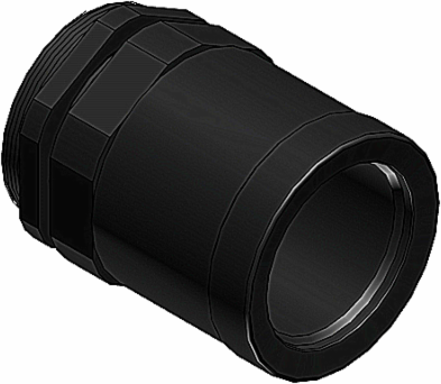

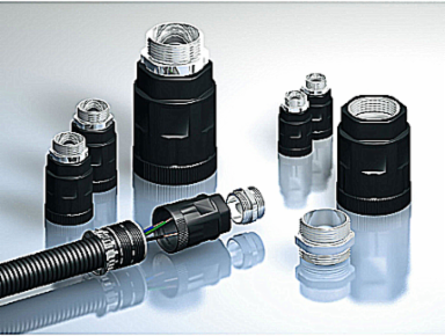

KNZ Straight Connector with Strain Relief, Metric Metal Thread for IP68 and IP69K - Thread Metric M25x1.5, Fits to Conduit Size NW/Metric 23/25, Color Black
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | Other |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | M25 x 1.5 |
| Thread length | 7.5mm |
| Material | Polyamide |
| Colour | Black |
| Approved in combination with protective conduit UR | Y |
| Approved in combination with protective conduit Lloyd's Register | N |
| Nominal diameter | 25mm |
|---|---|
| Model | Straight |
| Construction type | Internal thread |
| Thread type | Metric |
| Thread material | Brass |
| Total length | 75mm |
| Material sealing | TPE |
| Approved in combination with protective conduit CSA | N |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Operating temperature | -40 - +135°C |
Packaging
| Inner Quantity | 30 |
|---|---|
| Outer Quantity | 90 |
| Weight Uom | 4.2 lbs. per 100 |
| Inner Dimensions (inches) | 3.2x1.2x2.7 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x8.661 |
North American Specifications (UNSPSC)
| UNSPSC | 39121420 Liquid tight connectors |
|---|---|
| Brand Name | PMA |
| Size | NW23 |
| Material | Polyamide 6 with Nickel Plated Brass Threads |
| IGCC | 4585 Liquid tight connectors |
|---|---|
| Type | Connectors-Straight |
| Connection | M25x1.5 |
| Color | Black |
