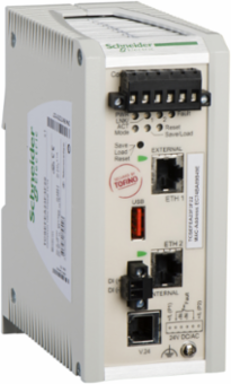

Schneider Electric TCSEFEC23F3F21 Industrial Ethernet Firewall, 2 Ports, Copper, IP20, 0.61 kg

Industrial Ethernet Firewall, 2 Ports, Copper, IP20, 0.61 kg
  • MPN: TCSEFEC23F3F21
  • PPN: SCH-TCSEFEC23F3F21

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1924.92/ EA

Description

This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 213 Class I Division 2, CSA C22.2 No 214, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.

Specifications

Environment

Ambient Air Temperature For Operation
-40-70 °C
Product Certifications
CE || UL || RCM || DNV
Relative Humidity
10-95 % non-condensing
StandardsUL 508 || EN/IEC 61131 || EN/IEC 60950
Directives2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
Ip Degree Of ProtectionIP20

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
China Rohs RegulationX

Complementary

Maximum Cable Distance Between Devices
100 m copper cable
Height
145 mm
Integrated Connection Type
shielded RJ45 copper cable
Mounting Support
35 mm symmetrical DIN rail
Communication Service
port monitoring
Alarm Output
1 voltfree contact 1 A
Net Weight
0.61 kg
Function Available
system information || report || IP Firewall list || configuration check || reachability test (ping) || alarms (Traps)
Ethernet Cabling System
TF switches
Local Signalling
P1 P2 power supplies 2 LEDs green) || fault 1 LED red) || device status 1 dual colour LED green/yellow) || memory key status 1 dual colour LED green/yellow) || internal port status 1 dual colour LED green/yellow) || serial port status 1 dual colour LED green/yellow)
Width
60 mm
[Us] Rated Supply Voltage12...48 V
Alarm Functionpower supply fault || data link status || switch fault || temperature threshold || external memory removed
Transmission Support Mediumtwisted shielded pairs cable CAT 5E copper cable
Power Consumption In W6.9 W
MarkingCE || UL || RCM
Redundancyredundant network coupling || router redundancy
Electrical Connectionremovable connector 6 ways power supply
Ethernet Servicemulticast filtering || syslog
Supply Voltage Limits9.6-60 V DC SELV || 18-30 V AC SELV
Diagnostics Run Timesignal contact || self test || MAC notification
Depth125 mm

Specifications

Range Of Product
ConneXium
Product Or Component Type
Ethernet TCP/IP firewall
User Interface
built-in firewall
Cybersecurity
Syslog protocol support || IPSec
Port Ethernet10/100BASE-TX - 2 copper cable
Communication Port ProtocolEthernet TCP/IP || SSH || HTTP || HTTPS || SNMP || SFTP || SCP || LLDP || RS232
Encryption ProtocolMAC addresses filtering
ConceptTransparent Ready
