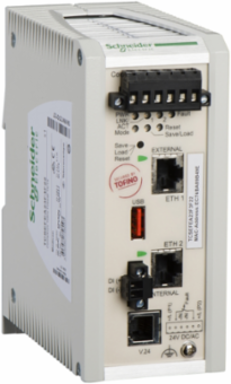

Schneider Electric TCSEFEA23F3F22 Modicon Tofino Ethernet Firewall, 2 Ports, 10/100BASE-TX, IP20
- MPN: TCSEFEA23F3F22
- PPN: SCH-TCSEFEA23F3F22
- UNSPSC: 43222501
CAD
$4337.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for advanced network security, the Modicon Tofino Ethernet Firewall from Schneider Electric offers robust protection for industrial environments. With its dual-port configuration supporting 10/100BASE-TX connections, this device ensures seamless communication while safeguarding your network from potential threats. Designed to meet IP20 standards, it is suitable for installation in areas where reliable performance is critical, making it an essential component for maintaining the integrity of your control systems and data flow.
Features
- Deep packet inspection ensure the secure access on the network
- Transparent bridge support the rapid deployment into existing networks without adjusting IP addresses or subnets
- Easy configuration and administration process via dedicated software
- Event Logging helps on the network diagnostics
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany, United States |
|---|
| Depth | 125 mm |
|---|
Communications & Management Attributes
| Alarm Function | power supply fault, data link status, switch fault |
|---|---|
| Alarm Output | 1 voltfree contact 1 A |
| Communication Port Protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, RS232 |
|---|
Complementary Attributes
| Integrated Connection Type | shielded RJ45 copper cable |
|---|---|
| Us Rated Supply Voltage | 12...48 V |
| Maximum Cable Distance Between Devices | 100 m copper cable |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Cybersecurity | IPSec, DoS prevention |
| Certificate Agency | CE, UL, RCM, UKCA, DNV |
| Local Publishable Date | 2026-01-12 |
| Device Type | Networking and Cable Solutions - Networking Devices |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Encryption Protocol | MAC addresses filtering |
| Ethernet Service | multicast filtering |
| Mounting Support | 35 mm symmetrical DIN rail |
| Number Of Rj45 Port | 2 10/100 Mbps |
| Power Consumption In W | 5 W |
| Product Or Component Type | Ethernet TCP/IP firewall |
| Redundancy | redundant power supplies |
| Supply Voltage Limits | 9.6-60 V DC SELV18-30 V AC SELV |
| Transmission Support Medium | twisted shielded pairs cable CAT 5E copper cable |
| Height Nominal | 145 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Local Signalling | 2 LEDs (green) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for internal port status, 1 dual colour LED (green/yellow) for serial port status |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2024 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Electrical Connection | removable connector 6 ways power supply |
| Ethernet Cabling System | TF switches |
| Marking | CE |
| Number Of Port | 2 |
| Port Ethernet | 10/100BASE-TX - 2 copper cable |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon Networking |
| Returnability | No |
| Sustainable Packaging | No |
| User Interface | built-in firewall |
| Width Nominal | 60 mm |
| Customs Code | 8517620020 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1003004EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 10-95 % non-condensing |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | 0-60 °C |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1003004EN |
General Attributes
| Product Or Component Type | Ethernet TCP/IP firewall |
|---|
| Range Of Product | Modicon Networking |
|---|
ETIM
| ETIM 8 | EC001478 |
|---|---|
| ETIM 10 | EC001478 |
| ETIM 9 | EC001478 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
