Schneider Electric LAD4BB TeSys D Contactor Wiring Adapter for LC1D09-D38, Green Premium Compliant
- MPN: LAD4BB
- PPN: SCH-LAD4BB
CAD
$28.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

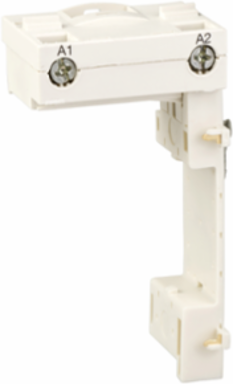

TeSys D wiring adapter, for connection to the coil circuit of 3-pole contactors LC1D09-D38. It allows connection to the coil circuit from the top of the contactor, for adapting existing wiring to a new product. Also used for mounting of an electronic timer module LA4DT (to be ordered separately). Green Premium compliant (RoHS/REACh).
Features
- The Schneider Electric LAD4BB wiring adapter is engineered specifically for physical integration with TeSys Deca and TeSys D 3-pole contactors, spanning from the LC1D09 to LC1D38 frames, as well as LC1DT20 to LC1DT60 models. This precise engineering eliminates sizing guesswork, giving industrial technicians and commercial panels builders a guaranteed flush fit without modifying existing din-rail spacing.
- This retrofit adapter alters the connection geometry by relocating the coil circuit inputs directly to the top of the contactor. By streamlining wire entry paths from above, you save valuable gutter space in cramped control panels and reduce cable bend strain, making long-term maintenance and troubleshooting significantly simpler.
- Designed specifically as a retrofit coil cabling accessory, this unit allows you to drop newer TeSys components into older electrical setups seamlessly by accommodating legacy wiring configurations. It prevents costly, time-consuming panel rebuilds and minimizes machine downtime by letting you adapt your existing field wiring to new hardware in minutes.
- Beyond standard connection routing, this adapter acts as the direct mechanical interface required to mount an LA4DT electronic timer module onto your contactor.
Documentation & Downloads
Specifications
Additional
- Product Type
- retrofit coil without coil suppression
- Net Weight
- 0.019 kg
- Material & Environmental Compliance
- Toxic Heavy Metal Free, Mercury Free, RoHS Compliant, REACH SVHC Free, Green Premium
- Waste Disposal
- WEEE compliant - EU specific waste collection required
- Accessory Category
- connection accessory
- China RoHS
- Pro-active declaration (out of legal scope)
CompatibilityLC1D09...D38
Warranty18 months
Environmental DisclosureENVPEP111253EN
RangeTeSys
Device Short NameLAD
Country of OriginFrance
