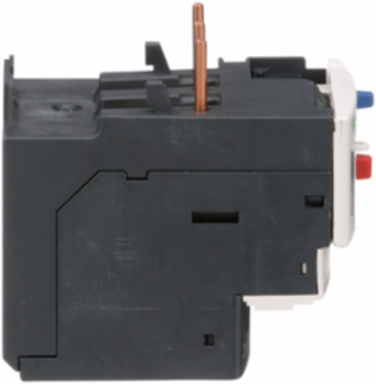

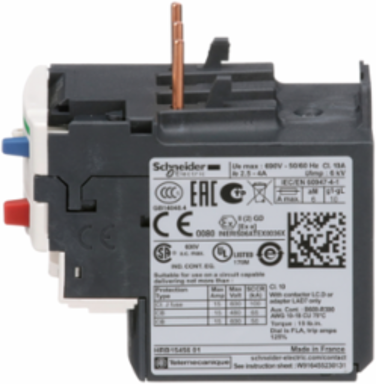

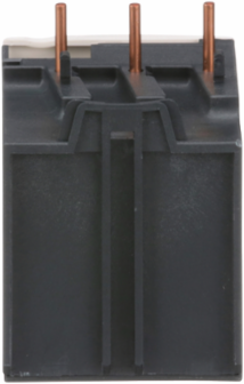

Schneider Electric LRD08 TeSys Deca Thermal Overload Relay 690VAC 3P 2.5-4A Class 10A

MPN: LRD08
PPN: SCH-LRD08

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$124.05

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 2.5 to 4.0 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).

Features

The LRD08 is a TeSys Deca (formerly TeSys D) differential thermal overload relay. Its primary job is to protect three-phase AC motors against overloads and phase failures. Unlike a fuse or breaker that handles short circuits, the LRD08 monitors the heat generated by the motor's current to prevent the windings from burning out during sustained heavy use.
This model features an adjustable current setting range of 2.5 to 4 Amperes. You dial the blue arrow to match the Full Load Amps (FLA) listed on your motor's nameplate. It is a Class 10A device, meaning it will trip within 10 seconds or less when the current reaches 7.2 times the setting, providing a perfect balance for standard motor startups.
The LRD08 is designed for "direct mounting" beneath Schneider TeSys Deca contactors, specifically models LC1D09 through LC1D38. It plugs directly into the bottom of the contactor, creating a compact, integrated motor starter assembly. It can also be mounted independently on a DIN rail if used with a separate terminal block (LAD7B106).
This is a differential relay, meaning it is highly sensitive to phase imbalance. If one of the three phases loses power or drops significantly in voltage, the LRD08 will trip much faster than a standard thermal relay. This is critical for preventing "single-phasing," which is a leading cause of industrial motor failure.

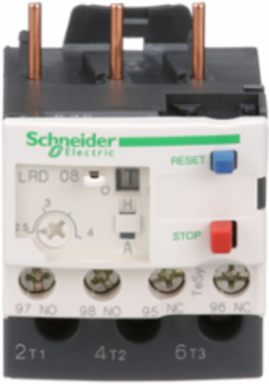

The unit includes integrated auxiliary contacts (1 NO + 1 NC) used to signal a fault or cut power to the contactor coil. It features a multi-function red "Stop" button and a blue "Reset" selector that can be set to: Manual (H): Requires a human to press the button to restart. Automatic (A): Resets itself once the internal bi-metallic strips cool down.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Thailand, United States

Depth	70 mm

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Associated Fuse Rating	4 A gG for signalling circuit, 4 A BS for signalling circuit
Mounting Support	plate, with specific accessories, rail, with specific accessories, under contactor
Permissible Current	3 A 120 V AC-15 signalling circuit, 0.22 A 125 V DC-13 signalling circuit
Range	TeSys, TeSys Deca
Tightening Torque	control circuit 1.7 N.m screw clamp terminals, power circuit 1.7 N.m screw clamp terminals
[Ui] Rated Insulation Voltage	power circuit 600 V CSA, power circuit 600 V ULpower circuit 690 V IEC 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]	0.024163479198025903, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.01635889814277638
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	12 kg CO2 eq., 11.633004615445152
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	Relay, Control & Measurement - Protection relay
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	Red push-button stopBlue push-button reset
Dielectric Strength	1.89 kV 50 Hz IEC 60947-1
Flame Retardance	V1 conforming to UL 94
Phase Failure Sensitivity	tripping current 130 % of Ir on two phase, the last one at 0
Product Or Component Type	differential thermal overload relay
Returnability	Yes
Sustainable Packaging	No
Thermal Protection Adjustment Range	2.5-4 A
Tripping Threshold	1.14 +/- 0.06 Ir IEC 60947-4-1
R Thermal Protection Adj Range	2.5-4 A
Database Version	2023-02
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	28.3824
Energy Model - Installation [A5]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal	66 mm
[Ith] Conventional Free Air Thermal Current	5 A signalling circuit
[Uimp] Rated Impulse Withstand Voltage	6 kV
Package Weight(Lbs)	139.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Mechanical Robustness	vibrations6 Gn IEC 60068-2-6, shocks15 Gn for 11 ms IEC 60068-2-7
Network Type	AC, DC
Product Name	TeSys LRD, TeSys Deca
Temperature Compensation	-20-60 °C, -20-60 °C
Certificate Agency	IEC, UL, CSA, CCC, EAC, BV, RINA, DNV-GL, LROS (Lloyds register of shipping), ATEX INERIS, UKCA
Connections - Terminals	power circuit screw clamp terminals 1 1-4 mm² flexible with cable endpower circuit screw clamp terminals 1 1-6 mm² solid without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end, control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end, control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end, power circuit screw clamp terminals 1 1.5-10 mm² flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.21678519324421383, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.0267614686619415
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI0802006
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	0627
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	LRD
Device Short Name	LRD
Energy Efficiency Optimized	False
Network Frequency	0...400 Hz
Product Availability	Stock - Normally stocked in distribution facility
Relay Application	motor protection
Software Version	v6.1
Thermal Overload Class	class 10A IEC 60947-4-1
Total Lifecycle Carbon Footprint	13 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP0802006EN
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3-EN-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Europe, EU-27
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In %	50
Width Nominal	45 mm
[Ue] Rated Operational Voltage	690 V AC 0...400 Hz power circuit IEC 60947-4-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490055

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Storage	-60-70 °C, -60-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI0802006
Environmental Disclosure	ENVPEP0802006EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-08-05
Psr Version	PSR-0005-ed3-EN-2023 06 06

Ambient Air Temperature For Operation	-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1-20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1, -20-60 °C without derating IEC 60947-4-1
Product Compatibility	LC1D12, LC1D09, LC1D25, LC1D38, LC1D32, LC1D18
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	12.917073654692109
Climatic Withstand	IACS E10
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP0802006EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
