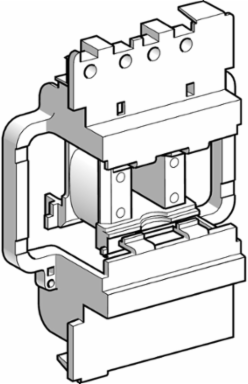

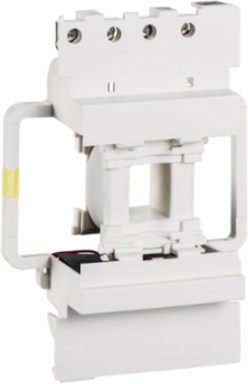

Schneider Electric LX4D8BD Contactor coil, TeSys Deca, LX4D8, 24V DC standard for 115 and 150A contactor
Schneider Electric LX4D8BD Contactor coil, TeSys Deca, LX4D8, 24V DC standard for 115 and 150A contactor
- MPN: LX4D8BD
- PPN: SCH-LX4D8BD
- UNSPSC: 39121529
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$447.03/ EA
Description
TeSys Deca replacement DCcoil 24V, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1 D115, D150. It operates in the voltage limits 0.75-1.2 Uc. Coil with integral suppression device fitted as standard.
Features
- Wider voltage limits: 0.75-1.2 Uc
- Safe to use in circuit protection designed with integral suppression device
- Reliable performance under high temperature up to 55°C
- Sustainability compliant
Specifications
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.75...1.2 Uc (at <55 °C), drop-out: 0.15...0.4 Uc (at <55 °C)
- Maximum Operating Rate
- 1200 cyc/h 60 °C
Control Circuit TypeDC standard
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Device Short Name
- LX4D8
- Hold In Power Consumption In W
- 2.4-5.1 W 20 °C
- Mechanical Durability
- 8 Mcycles
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Returnability
- No
- Time Constant
- 25 ms
- Medium Desc
- Contactor coil, TeSys Deca, LX4D8, 24V DC standard for 115 and 150A contactor
- Product Kit Identifier
- N
- Average Resistance
- 147 Ohm 20 °C
- Global Commercial Status
- End of commerc. announced
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-07-10
TraceabilityNo
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Coil Technologywithout built-in suppressor module
Energy Efficiency OptimizedFalse
Inrush Power In W270-365 W 20 °C)
Package Weight Lbs293.0 g
Product Or Component Typecontactor coil
Range Of ProductTeSys Deca
Sustainable PackagingYes
Uc Control Circuit Voltage224 V DC
Stocking FlagY
Pep CodeENVPEP1102005EN
Inductance Of Closed Circuit3.03 H
Uc Control Circuit Voltage524 V DC
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Ambient Air Temperature For Operation
- -5-60 °C
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Product CompatibilityLC1D150, LC1D115
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1102005EN
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1102005EN
General Attributes
- Product Or Component Type
- contactor coil
Range Of ProductTeSys Deca
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
