Square D 9998SL4 NEMA Size 2 Contact Kit for 8502SD, 8536SD, 8903SP, 3 Pole, 60A
- MPN: 9998SL4
- UPC: 785901882404
- PPN: SCH-9998SL4
CAD
$1068.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

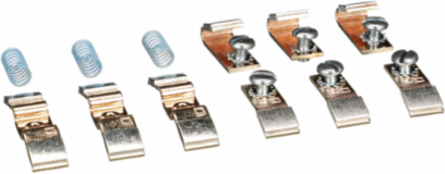

Type S magnetic contactors and starters are for motor control applications. 8903S lighting contactors are for lighting control applications. Type S contacts are easily replaced. This extends the life of the NEMA Size 2 contactor or starters or 60A lighting contactor. This replacement contact kit is for 3 pole 8502SD contactors, 8536SD starters and 8903SP lighting contactors. Kit includes the movable and stationary contacts and needed hardware for 3 poles.
Documentation & Downloads
Specifications
Key Specifications
- Accessory / Separate Part Destination
- class 8536 type S starter || class 8903 contactor
Product Or Component Typecontact kit
Complementary
- Height
- 1.5 in
- Width
- 3 in
- Net Weight
- 0.13 kg
Nema Size2
Depth4.5 in
Number Of Poles3
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
