Schneider Electric LADT9R1V TeSys D Changeover Contactor Assembly Kit 4 Pole with Interlocks
- MPN: LADT9R1V
- PPN: SCH-LADT9R1V
CAD
$83.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

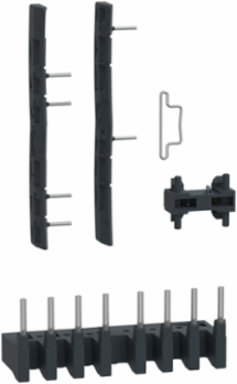

TeSys D kit for changeover contactors assembly, for 4-pole contactors LC1DT20-DT40. It contains a mechanical interlock LAD9V2 with an electrical interlocking LAD9V1, a set of 4 parallel bars LAD9V7. For assembling 2 identical contactors horizontally mounted, with screw clamp Everlink terminals. Green Premium compliant (RoHS/REACh).
Features
- This complete kit comes fully equipped with a robust mechanical interlock (LAD9V2), an electrical interlocking unit (LAD9V1), and a matching set of four heavy-duty parallel power connection bars (LAD9V7). For control system builders, this all-in-one package eliminates the hassle of tracking down disparate component part numbers, ensuring you have every vital link required for a safe, code-compliant horizontal contactor layout.
- Engineered specifically for the TeSys D and TeSys Deca lineups, this assembly kit offers seamless mechanical integration with 4-pole changeover contactors from the LC1DT20 right up through the LC1DT40 range. The precisely measured parallel bars align effortlessly with the original screw clamp and EverLink terminal footprints, cutting down your labor costs by preventing misalignment and stripped terminal threads during installation.
- By integrating a rigid mechanical interlock alongside a responsive electrical interlock, this setup guarantees that both 4-pole contactors can never accidentally close at the same time. This redundant protection is absolutely critical for power source transfer applications and reversing systems, eliminating the risk of catastrophic phase-to-phase short circuits that cause expensive upstream breaker trips or server rack power failures.
- Designed specifically for standard horizontal side-by-side mounting on a TS35 DIN rail or backplate, this low-profile hardware kit maintains a clean, uniform layout that keeps your panel tidy. Weighing in at a feather-light 0.045 kg, the compact interconnection bridges sit flush against the faces of your LC1DT units, maximizing available depth inside tightly packed control enclosures and automation boxes.
- Proudly carrying the official Green Premium eco-mark, this Schneider Electric product fully meets the stringent requirements of global EU RoHS and REACh environmental regulations. Industrial facility engineers can confidently specify this kit on green-certified projects, ensuring zero hazardous substances are introduced into the facility while maintaining maximum electrical performance.
Documentation & Downloads
Specifications
Additional
- Poles
- 4P
- Kit Composition
- electrical and mechanical interlock, set of power connection
- Country of Origin
- France
- Toxic Heavy Metal Free
- Yes
- Product Type
- kits for changeover contactor
- Range Of Product
- TeSys Deca
Product CompatibilityLC1DT20, LC1DT25, LC1DT32, LC1DT40
Weight0.045 kg
ComplianceRoHS Compliant, REACH Free of SVHC, Green Premium
Mercury FreeYes
RangeTeSys || Linergy
Warranty18 months
