TeSys D 3-Pole Reversing Contactor Assembly Kit with Interlock
Schneider Electric

Schneider Electric LAD9R1V TeSys D 3-Pole Reversing Contactor Assembly Kit with Interlock

  • MPN: LAD9R1V
  • PPN: SCH-LAD9R1V
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $92.80

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

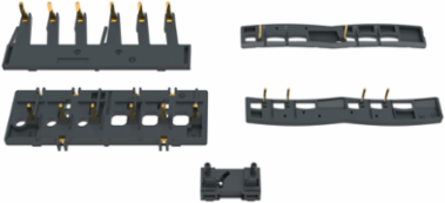

    TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D09-D38. For assembling 2 identical contactors horizontally mounted, connection by screw clamp terminals. It contains a mechanical interlock LAD9V2, an electrical interlocking LAD9V1, a set of 3 parallel bars LAD9V5, a set of 3 reverser bars LAD9V6. It conforms to RoHS/REACh regulation.

    Features

    • The LAD9R1V is a specialized assembly kit used to join two identical 3-pole TeSys Deca (formerly TeSys D) contactors to create a complete reversing motor starter. It provides the mechanical and electrical components necessary to switch a motor between "Forward" and "Reverse" directions safely and efficiently.
    • This kit is specifically designed for the mid-range of the TeSys Deca family, covering LC1D09 through LC1D38 contactors (9A to 38A). It is compatible with units that feature screw clamp terminals, ensuring a standardized fit for the most common motor starter configurations in Canadian industrial panels.
    • The kit includes both a mechanical interlock (LAD9V2) and an electrical interlock (LAD9V1). This dual-protection system is a safety requirement; the mechanical unit physically prevents both contactors from closing at the same time, while the electrical wiring ensures the coil of one cannot be energized if the other is active. This prevents catastrophic phase-to-phase short circuits.
    • To save you significant time and wire, the LAD9R1V includes: Parallel bars (LAD9V5): To connect the line-side (input) phases together. , Reverser bars (LAD9V6): To swap two of the three phases on the load-side (output), which is what physically reverses the motor's rotation.
    • The kit is designed for horizontal mounting, meaning the two contactors sit side-by-side on a standard 35mm DIN rail. The resulting assembly is compact and professionally organized, maintaining a clean look inside your control enclosure and allowing for easy heat dissipation.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Costa Rica, Czechia, France, United Kingdom, Mexico

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Kit Composition
    electrical and mechanical interlock, set of power connection
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Traceability
    No
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1904
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Compatibility Code
    LAD9
    Energy Efficiency Optimized
    False
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    TeSys Deca
    Sustainable Packaging
    Yes
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536904000
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    RangeTeSys, Linergy
    Local Publishable Date2026-07-07
    Stocking FlagN
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Device Short NameLAD9
    Number Of Poles3P
    Product Or Component Typekits for reversing contactor
    ReturnabilityYes
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Package Weight(Lbs)69.000 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Product CompatibilityLC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold

    General Attributes
