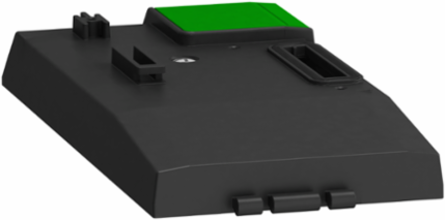

Schneider Electric LXM32ICAN Lexium 32i Control Unit, 0.636kg, IP65, Discrete I/O: 2 Safety, 4 Logic
Schneider Electric LXM32ICAN Lexium 32i Control Unit, 0.636kg, IP65, Discrete I/O: 2 Safety, 4 Logic
- MPN: LXM32ICAN
- PPN: SCH-LXM32ICAN
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1151.49/ EA
Description
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This control unit provides 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is easy to integrate and maintain. It is furnished with M12 connectors for CANmotion, M12 for CANopen, RJ45 for Modbus. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.636kg. It is suitable for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CE, TUV, CSA, RoHS and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.
Specifications
Complementary
- Discrete Input Logic
- positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V IEC 61131-2 Type 1 || positive DI)> 19 V < 9 V IEC 61131-2 Type 1 || positive or negative DI)< 5 V > 15 V IEC 61131-2 Type 1
- Status Led
- 1 LED (red) servo drive voltage || 1 LED error || 1 LED RUN
- Electromagnetic Compatibility
- conducted EMC EN 55011 class A group 1 || conducted EMC EN 55011 class A group 2 || conducted EMC EN/IEC 61800-3 environment 2 category C3 || conducted EMC IEC/EN 61800-3 category C2 || EMC immunity IEC/EN 61800-3 environments 1 and 2 || EMC immunity level 3 IEC 61000-4-2 || EMC immunity level 3 IEC 61000-4-3 || EMC immunity level 3 IEC 61000-4-5 || EMC immunity level 4 IEC 61000-4-4 || radiated EMC EN 55011 class A group 2 || radiated EMC IEC/EN 61800-3 category C3
- Response Time
- <= 5 ms compliment of STO_A, compliment of STO_B
- Contact Bounce Time
- <= 1 ms compliment of STO_A, compliment of STO_B || 0.25 µs...1.5 ms DI
- Communication Interface
- CANmotion, integrated || CANopen DS402, integrated
- Discrete Output Voltage
- <= 30 V DC
- Discrete Output Logic
- positive or negative DO)IEC 61131-2
- Method Of Access
- slave
- Safety Function
- safe torque off safety function, integrated
- Operating Altitude
- <= 1000 m without derating || > 1000...3000 m with conditions
- Protection Type
- against reverse polarity inputs signal || against short-circuits outputs signal
- Response Time On Output
- 250 µs DO)discrete
- Sampling Duration
- DI 0.25 ms discrete
Physical Interface2-wire RS485 multidrop Modbus
Discrete Input Voltage24 V DC capture || 24 V DC logic || 24 V DC safety
Transmission Rate9600, 19200, 38400 bps 0-40 m Modbus
Net Weight0.636 kg
Connector TypeM12 CANmotion || M12 CANopen || RJ45 Modbus
Braking Current50 mA
Discrete Output Number2
Type Of Coolingnatural convection
Control Signal Typeservo motor encoder feedback
Number Of Addresses1-127 CANopen, CANmotion || 1-247 Modbus
Operating Positionvertical +/- 10 degree
Discrete Output Typelogic DO)24 V DC
Safety LevelSIL 3 IEC 61508 || PL = e ISO 13849-1
Specifications
- Range Of Product
- Lexium 32i
- Product Or Component Type
- control unit
- Discrete Input Number
- 2 safety || 4 logic
Format Of The Driveboard
Discrete Input Typesafety compliment of STO_A, compliment of STO_B || logic DI
Device Short NameLXM32i
Contractual warranty
- Warranty
- 18 months
Environment
- Product Certifications
- CSA || TÜV || UL
- Standards
- IEC 61800-5-1 || IEC 61800-3
- Environmental Characteristic
- classes 3C1 IEC 60721-3-3
- Vibration Resistance
- 1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3
Ambient Air Temperature For Operation0-50 °C UL
Shock Resistance15 gn 11 ms IEC 60028-2-27
MarkingCE
Pollution Degree2 IEC 61800-5-1
Ip Degree Of ProtectionIP65
