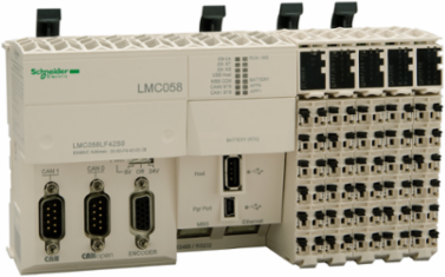

Schneider Electric LMC058LF42 Modicon Motion Controller, 42 Discrete I/O, 24V DC Supply, IP20 Rating
- MPN: LMC058LF42
- PPN: SCH-LMC058LF42
CAD
$2836.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon LMC058 range, an offer of motion controllers for coordinated, synchronised and interpolated motion control. This motion controller provides 42 discrete I/Os and 3V CR2477M lithium battery. It is a compact base with a rated supply voltage of 24V DC and a rated current of 0.04A for embedded expert modules power, 10A for I/O power segment, 0.28A for main supply. It provides 26 totally discrete inputs, 10 for fast input, 12 for input, 4 for regular input and 16 totally discrete outputs, 12 for outputs, 4 for fast outputs. It supports 128MB flash and 64MB RAM memory. It is an IP20 rated product. Its dimensions are 175mm (Width) x 85mm (Depth) x 99mm (Height). It weighs 0.55kg. This product is certified by CE, CULus, CSA, C-Tick and GOST-R. It meets UL 508, IEC 61131-2, CSA C22.2 No 213 and CSA C22.2 No 142 standards. Compact and totally expandable, the Modicon Motion Controllers offer performant solutions in terms of motion control for synchronized axis, speed control, high speed counting and communication networks for machine builders. A full range of scalable controllers to design all your applications, thanks to a single software suite, SoMachine, including the same Motion Libraries based on PLCopen, Embedded I/O and numerous field buses.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France, United States
Depth85 mm
Complementary Attributes
- Integrated Connection Type
- 1 isolated serial link female RJ45 Modbus master/slave RTU/ASCII or character mode ASCII RS232/RS485 300...115200 bps1 CAN port male SUB-D 9 CANmotion bus or CANopen master, 1 CAN port male SUB-D 9 CANopen master1 encoder female SUB-D 15, 1 isolated serial link female RJ45 Ethernet Modbus TCP/IP slave 10BASE-T/100BASE-TX1 isolated serial link mini B USB 480 Mbit/s, 1 isolated serial link USB type A 480 Mbit/s
- Line Rated Current
- 0.04 A embedded expert modules power0.28 A main supply10 A I/O power segment
Maximum Cable Distance Between Devices<30 m fast input, <30 m fast input<30 m fast input, <30 m fast input
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Configurable Filtering Time
- 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
- Insulation
- between channels and internal logic 500 V AC, non-insulated between channels
- Product Specific Application
- -, -
- Voltage State 1 Guaranteed
- >= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V fast output, >= 15 V regular input, >= 15 V regular input>= 15 V fast input, >= 15 V fast input, >= 15 V fast output, >= 15 V regular input
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Dangerous Goods Code
- LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Anti Bounce Filtering
- 2 µs...4 ms configurable fast input/regular input and fast output
- Local Signalling
- 1 LED CAN0 STS1 LED green/red CAN1 STS1 LED green/yellow MBS COM1 LED per channel APP01 LED red APP1
- Memory Type
- 128 MB flash64 MB RAM
- Power Consumption In W
- 13.03 W
- Product Or Component Type
- Motion controller
- Realtime Clock
- without any user calibration clock, clock drift < 30 s/month at 25-25 °Cwith user calibration clock, clock drift <= 6 s/month
- Shock Resistance
- 15 gn 11 ms
- Sustainable Packaging
- No
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
- Height Nominal
- 99 mm
- [Us] Rated Supply Voltage
- 24 V DC embedded expert modules power
- Disturbance Radiated/Conducted
- CISPR 11
- Package Weight(Lbs)
- 790.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 8 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 4 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 1 V/m (2...2.7 GHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3electrical fast transient/burst immunity test - test level: 1 kV (I/O) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 1 kV (shielded cable) conforming to IEC 61000-4-4electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4surge immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5conducted RF disturbances conforming to IEC 61000-4-6conducted and radiated emissions conforming to CISPR 11
Peak Current25 kA <= 500 s)I/O power segment, 50 kA <= 150 s)embedded expert modules power, 1.2 A > 70 s)main supply100 kA <= 70 s)main supply
Voltage State 0 Guaranteed<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V fast output, <= 5 V regular input, <= 5 V regular input<= 5 V fast input, <= 5 V fast input, <= 5 V fast output, <= 5 V regular input
Certificate AgencyC-tick, cULus, CSA, GOST-R
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - motion controller
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Data Backed Upbattery variables of type retain and retain persistent
MarkingCE
Mounting Supportsymmetrical DIN rail
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon LMC058
ReturnabilityNo
Supply Voltage Limits20.4-28.8 V
Transmission Rate10 kbit/s 5000-5000 m CANopen1000 kbit/s 4-4 m CANopen125 kbit/s 500-500 m CANopen20 kbit/s 2500-2500 m CANopen250 kbit/s 250-250 m CANopen50 kbit/s 1000-1000 m CANopen500 kbit/s 100-100 m CANopen800 kbit/s 25-25 m CANopen
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal175 mm
Discrete I/O Number42
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109160
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % without condensation
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ip Degree Of ProtectionIP20IEC 61131-2
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Storage Altitude0-3000 m
General Attributes
- Product Or Component Type
- Motion controller
Range Of ProductModicon LMC058
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Current
- 4 mA fast output
- Discrete Output Number
- 12 output4 fast output
- Output Voltage Limits
- 19.2...28.8 V
Discrete Output Logicsource
Discrete Output Voltage24 V DC
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0 ms fast input/regular input and fast output, 1.5 ms fast input/regular input and fast output, 12 ms fast input/regular input and fast output, 4 ms fast input/regular input and fast output
Anti Bounce Filtering2 µs...4 ms configurable fast input/regular input and fast output
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 4 mA fast input, 4 mA regular input
- Input Impedance
- 6 kOhm fast input, 6 kOhm regular input
- Discrete Input Number
- 10 fast input12 input4 regular input
- Discrete Input Voltage Type
- DC
Discrete Input Logicsink fast input, sink regular inputsource input
Counting Input Number8 200 kHz
Discrete Input Voltage24 V
Batteries & Runtime Attributes
- Battery Life
- 1.5 year(s)
Battery Type3 V CR2477M lithium
