CoolSeal Butt Splice, Conductor Range 10-12, Bag of 25

Documentation & Downloads

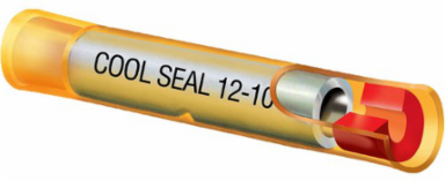

ILSCO CSBS-10-P25 CoolSeal Butt Splice, Conductor Range 10-12, Bag of 25

MPN: CSBS-10-P25
UPC: 783669203417
PPN: ILC-CSBS-10-P25

CAD

$46.05

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

CoolSeal Butt Splice, Conductor Range 10-12, Bag of 25

Documentation & Downloads

Specifications

Key Specifications

Height: 0.256 in | 6.5024 mm

Weight: 0.225 lbs

Length1.245 in | 31.623 mm

Width0.256 in | 6.5024 mm

Voltage

Voltage Rating: 600 V

Dimensions

Height BX (IN): 3.625

Length (mm): 31.623

Outside Diameter (IN): 0.256

Weight BX (LB): 13.5

Width (mm): 6.5024

Height (mm)6.5024

Maximum Wire Insulation Diameter (IN)0.252

Outside Diameter (mm)6.5024

Width BX (IN)6.375

Testing Standards

Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov

UL / CULUS Specification: UL/cUL 486C Listed

UL Control Number453G

UL File NumberE6207

Additional Class Attributes

Conductor Entry: Funnel wire

Construction Type: Butted

Installing Dies: Die Set A

Number of Conductors: 1

ConnectionCompression

Installation ToolingILST-22K

Insulation Flared EndNo

Material and Finish

Conductor Material: Copper

Fully Insulated: Yes

Material: Copper

Connector FinishTin

InsulationNylon

Conductor Ranges

Conductor Range CU Solid (Primary, run, main, line): 10 Sol - 12 Sol

Conductor Range CU Stranded (Primary, run, main, line)10 Str - 12 Str

General

Bag Quantity: 25

Dual Rated: No

UPC Code: 78366920341

Carton Quantity DescriptionSTD PACK QTY 1

NEMA CodeS-588-3

Color

Color: Silver

Color CodeYellow

Environment and Temperature

Halogen Free: Yes

Temperature Rating105°C
