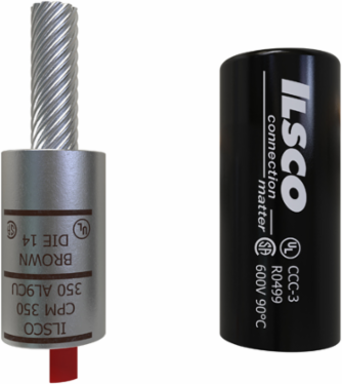

ILSCO CPM-350 Copper Compression Pigtail Adaptor, Conductor Size 350, Tin Plated, UL, CSA
- MPN: CPM-350
- UPC: 783669008609
- PPN: ILC-CPM-350
CAD
$76.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Compression Pigtail Adaptor, Conductor Size 350, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.335 in | 33.909 mm
- Weight
- 0.191 lbs
Length4.625 in | 117.475 mm
Width1.335 in | 33.909 mm
Voltage
- Voltage Rating
- 600 V
Voltage Rating without cover35 kV
Dimensions
- Barrel Length (IN)
- 2.062
- Cover Length (IN)
- 3.094
- Height BX (IN)
- 2.75
- Inside Diameter (IN)
- 0.705
- Length (mm)
- 117.475
- Outside Diameter (IN)
- 1.155
- Pin Diameter (IN)
- 0.528
- Pin Length (IN)
- 1.625
- Weight BX (LB)
- 4.283
- Width (mm)
- 33.909
Barrel Length (mm)52.3748
Cover Length (mm)78.5876
Height (mm)33.909
Inside Diameter (mm)17.907
Mounting Hole Spacing (mm)0
Outside Diameter (mm)29.337
Pin Diameter (mm)13.4112
Pin Length (mm)41.275
Width BX (IN)6
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number941R
UL File NumberE62525
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- Yes
- ILSCOs Die Index Number
- 14
- Replacement Part(s)
- Cover
Barrel TypeStandard
ConnectionCompression
Flared EndNo
Number of Conductors1
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Supplied with insulating cover
Connector FinishTin
MaterialCopper
Conductor Ranges
- Approximate Pin Size
- 4/0 AWG
- Conductor Range CU Stranded (Primary, run, main, line)
- 350 kcmil
Conductor Range AL Stranded (Primary, run, main, line)350 kcmil
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900860
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
Color
- Color
- Silver
Color CodeBrown
Environment and Temperature
- Temperature Rating
- 90°C
