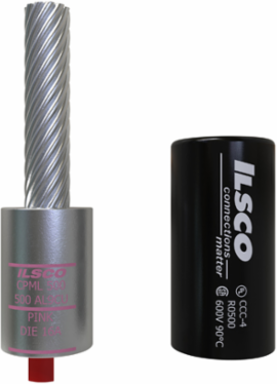

Ilsco CPML-500 Copper Compression Pigtail Adaptor, Conductor Size 500, Long Barrel, Tin Plated, UL, CSA
Ilsco CPML-500 Copper Compression Pigtail Adaptor, Conductor Size 500, Long Barrel, Tin Plated, UL, CSA
- MPN: CPML-500
- UPC: 0783669008708
- PPN: ILC-CPML-500
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$139.77/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Voltage Rating without cover35 kV
Dimensions
- Barrel Length (IN)
- 2.087
- Cover Length (IN)
- 3.094
- Height BX (IN)
- 2.75
- Inside Diameter (IN)
- 0.848
- Length (mm)
- 152.4
- Outside Diameter (IN)
- 1.375
- Pin Diameter (IN)
- 0.681
- Pin Length (IN)
- 3
- Weight BX (LB)
- 6.9901
- Width (mm)
- 39.497
Barrel Length (mm)53.0098
Cover Length (mm)78.5876
Height (mm)39.497
Inside Diameter (mm)21.5392
Mounting Hole Spacing (mm)0
Outside Diameter (mm)34.925
Pin Diameter (mm)17.2974
Pin Length (mm)76.2
Width BX (IN)6
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number941R
UL File NumberE62525
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- Yes
- ILSCOs Die Index Number
- 16A
- Replacement Part(s)
- Cover
Barrel TypeLong
ConnectionCompression
Flared EndNo
Number of Conductors1
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Supplied with insulating cover
Connector FinishTin
MaterialCopper
Conductor Ranges
- Approximate Pin Size
- 350 kcmil
- Conductor Range CU Stranded (Primary, run, main, line)
- 500 kcmil
Conductor Range AL Stranded (Primary, run, main, line)500 kcmil
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900870
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
Specifications
- Height
- 1.555 in | 39.497 mm
- Weight
- 0.334 lbs
Length6 in | 152.4 mm
Width1.555 in | 39.497 mm
Color
- Color
- Silver
Color CodePink
Environment and Temperature
- Temperature Rating
- 90°C
