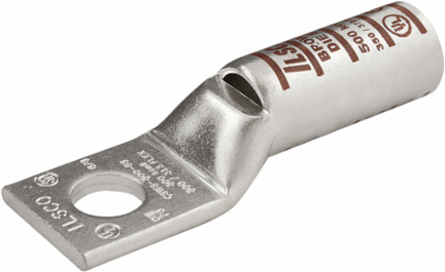

ILSCO CLWS-3-14 Surecrimp Copper Compression Lug, Conductor Size 3, 1 Hole, 1/4in Bolt Size, Long Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CLWS-3-14
- UPC: 783669631678
- PPN: ILC-CLWS-3-14
CAD
$23.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surecrimp Copper Compression Lug, Conductor Size 3, 1 Hole, 1/4in Bolt Size, Long Barrel, Sight Window, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.405 in | 10.287 mm |
|---|---|
| Weight | 0.0313293110501838 lbs |
| Length | 2.06 in | 52.324 mm |
|---|---|
| Width | 0.532 in | 13.5128 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Barrel Length (IN) | 1.125 |
|---|---|
| Dimension G (IN) | 0.321 |
| Height BX (IN) | 2.25 |
| Inside Diameter (IN) | 0.275 |
| Length (mm) | 52.324 |
| Mounting Hole Diameter (mm) | 7.1374 |
| Outside Diameter (IN) | 0.375 |
| Strip Length (mm) | 30.1498 |
| Tang Length (mm) | 17.272 |
| Tang Thickness (mm) | 2.54 |
| Tang Width (mm) | 13.5128 |
| Width BX (IN) | 5 |
| Barrel Length (mm) | 28.575 |
|---|---|
| Dimension G (mm) | 8.1534 |
| Height (mm) | 10.287 |
| Inside Diameter (mm) | 6.985 |
| Mounting Hole Diameter (IN) | 0.281 |
| Mounting Hole Spacing (mm) | 0 |
| Outside Diameter (mm) | 9.525 |
| Tang Length (IN) | 0.68 |
| Tang Thickness (IN) | 0.1 |
| Tang Width (IN) | 0.532 |
| Weight BX (LB) | 1.6975 |
| Width (mm) | 13.5128 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| NEBS Rating | Level 3 |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL / CULUS Specification | UL 486A/B Listed, UL 467 Listed |
Additional Class Attributes
| Barrel Marking | Ink |
|---|---|
| Connecting Angle | 180° |
| Contains DE-OX® | No |
| ILSCOs Die Catalog Number | ILD-29 |
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Slotted | No |
| Undrilled | No |
| Barrel Type | Long |
|---|---|
| Connection | Compression |
| Flared End | No |
| ILSCOs Die Index Number | I-29 |
| Narrow Tang | No |
| Sight Window | Yes |
| Tang End Shape | Square |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 3 Str |
|---|---|
| Flex Conductor Range | 4 G,H,I,K,M,DLO |
| Expanded Conductor Range | 3 Str - 6 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded, Flex |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 25 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366963167 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/4 |
|---|
Color
| Color | Silver |
|---|
| Color Code | White |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
