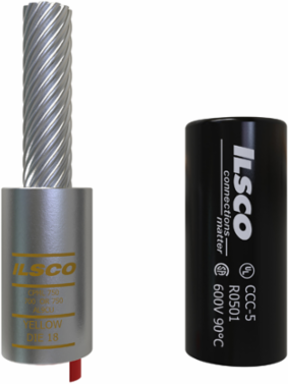

Ilsco CPML-750 Copper Compression Pigtail Adaptor, Conductor Size 750, Long Barrel, Tin Plated, UL, CSA
Ilsco CPML-750 Copper Compression Pigtail Adaptor, Conductor Size 750, Long Barrel, Tin Plated, UL, CSA
- MPN: CPML-750
- UPC: 0783669008722
- PPN: ILC-CPML-750
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$169.73/ EA
Specifications
Voltage
- Voltage Rating
- 600 V
Voltage Rating without cover35 kV
Dimensions
- Barrel Length (IN)
- 2.75
- Cover Length (IN)
- 3.844
- Height BX (IN)
- 2
- Inside Diameter (IN)
- 1.015
- Length (mm)
- 171.45
- Outside Diameter (IN)
- 1.5
- Pin Diameter (IN)
- 0.813
- Pin Length (IN)
- 3
- Weight BX (LB)
- 3.5561
- Width (mm)
- 42.672
Barrel Length (mm)69.85
Cover Length (mm)97.6376
Height (mm)42.672
Inside Diameter (mm)25.781
Mounting Hole Spacing (mm)0
Outside Diameter (mm)38.1
Pin Diameter (mm)20.6502
Pin Length (mm)76.2
Width BX (IN)6.1875
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number941R
UL File NumberE62525
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- Yes
- ILSCOs Die Index Number
- 18
- Replacement Part(s)
- Cover
Barrel TypeLong
ConnectionCompression
Flared EndNo
Number of Conductors1
Material and Finish
- Conductor Material
- Aluminum, Copper
- Insulation
- Supplied with insulating cover
Connector FinishTin
MaterialCopper
Conductor Ranges
- Approximate Pin Size
- 500 kcmil
- Conductor Range CU Stranded (Primary, run, main, line)
- 750 kcmil - 700 kcmil
Conductor Range AL Stranded (Primary, run, main, line)750 kcmil - 700 kcmil
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900872
Carton Quantity DescriptionSTD PACK QTY 3
NEMA CodeS-588-3
Specifications
- Height
- 1.68 in | 42.672 mm
- Weight
- 0.479 lbs
Length6.75 in | 171.45 mm
Width1.68 in | 42.672 mm
Color
- Color
- Silver
Color CodeYellow
Environment and Temperature
- Temperature Rating
- 90°C
