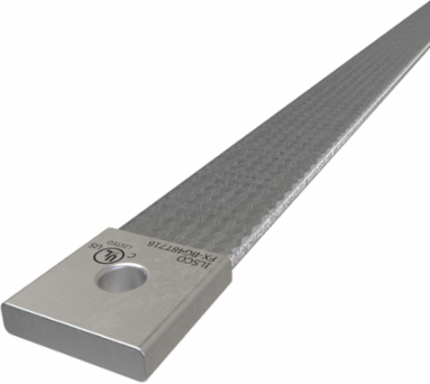

ILSCO FX-BG48T716 Copper Flex Braid Connector, Conductor Equivalent Size 300, 1 Braid, 48in, 1 Hole, 7/16in Bolt Size, Tin Plated, UL/cUL
- MPN: FX-BG48T716
- UPC: 783669017540
- PPN: ILC-FX-BG48T716
CAD
$380.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 300, 1 Braid, 48in, 1 Hole, 7/16in Bolt Size, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.364 in | 9.2456 mm |
|---|---|
| Weight | 5.81495771105017 lbs |
| Length | 48 in | 1219.2 mm |
|---|---|
| Width | 1.63 in | 41.402 mm |
Dimensions
| Dimension G (IN) | 0.815 |
|---|---|
| Height (mm) | 9.2456 |
| Length of Ferrule (IN) | 1.63 |
| Mounting Hole Diameter (IN) | 0.46 |
| Thickness (mm) | 9.2456 |
| Dimension G (mm) | 20.701 |
|---|---|
| Length (mm) | 1219.2 |
| Length of Ferrule (mm) | 41.402 |
| Mounting Hole Diameter (mm) | 11.684 |
| Width (mm) | 41.402 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|---|
| UL / CULUS Specification | UL/cUL 467 Listed |
| UL Control Number | 667P |
|---|---|
| UL File Number | E34440 |
Additional Class Attributes
| Circular Mils/Braid | 336000 |
|---|---|
| Number of Braids | 1 |
| Shape Of Conductor | Flat |
| Mounting Hole Type | Thru |
|---|---|
| Number of Mounting Holes | 1 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Wire Equivalent | 300 kcmil |
|---|
Additional Technical Specifications
| Connector Amperage Rating CU (Derated where applicable) | 340 Amps |
|---|
| Conductor Type | Braid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366901754 |
| Carton Quantity Description | STD PACK QTY 1 |
|---|---|
| NEMA Code | 0-000-1 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 7/16 |
|---|
