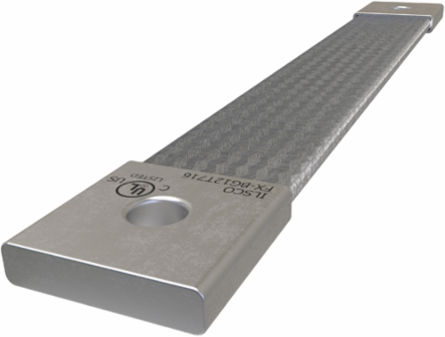

ILSCO FX-BG12T716 Copper Flex Braid Connector, Conductor Equivalent Size 300, 1 Braid, 12in, 1 Hole, 7/16in Bolt Size, Tin Plated, UL/cUL
- MPN: FX-BG12T716
- UPC: 783669017496
- PPN: ILC-FX-BG12T716
CAD
$2017.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 300, 1 Braid, 12in, 1 Hole, 7/16in Bolt Size, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.364 in | 9.2456 mm
- Weight
- 1.59705395509616 lbs
Length12 in | 304.8 mm
Width1.63 in | 41.402 mm
Dimensions
- Dimension G (IN)
- 0.815
- Height (mm)
- 9.2456
- Length of Ferrule (IN)
- 1.63
- Mounting Hole Diameter (IN)
- 0.46
- Thickness (mm)
- 9.2456
Dimension G (mm)20.701
Length (mm)304.8
Length of Ferrule (mm)41.402
Mounting Hole Diameter (mm)11.684
Width (mm)41.402
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Circular Mils/Braid
- 336000
- Number of Braids
- 1
- Shape Of Conductor
- Flat
Mounting Hole TypeThru
Number of Mounting Holes1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Wire Equivalent
- 300 kcmil
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 340 Amps
Conductor TypeBraid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366901749
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 7/16
