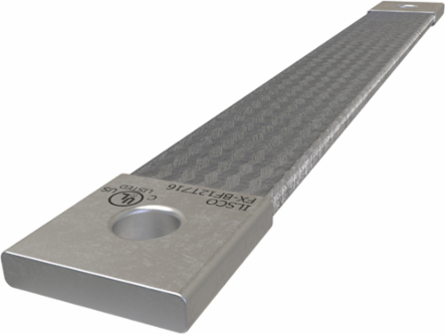

ILSCO FX-BF12T716 Copper Flex Braid Connector, Conductor Equivalent Size 4/0, 1 Braid, 12in, 1 Hole, 7/16in Bolt Size, Tin Plated, UL/cUL
- MPN: FX-BF12T716
- UPC: 783669017410
- PPN: ILC-FX-BF12T716
CAD
$602.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 4/0, 1 Braid, 12in, 1 Hole, 7/16in Bolt Size, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.28 in | 7.112 mm
- Weight
- 1.16061469010664 lbs
Length12 in | 304.8 mm
Width1.38 in | 35.052 mm
Dimensions
- Dimension G (IN)
- 0.69
- Height (mm)
- 7.112
- Length of Ferrule (IN)
- 1.38
- Mounting Hole Diameter (IN)
- 0.46
- Thickness (mm)
- 7.112
Dimension G (mm)17.526
Length (mm)304.8
Length of Ferrule (mm)35.052
Mounting Hole Diameter (mm)11.684
Width (mm)35.052
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Circular Mils/Braid
- 230400
- Number of Braids
- 1
- Shape Of Conductor
- Flat
Mounting Hole TypeThru
Number of Mounting Holes1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Wire Equivalent
- 4/0 AWG
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 375 Amps
Conductor TypeBraid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366901741
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 7/16
