ILSCO

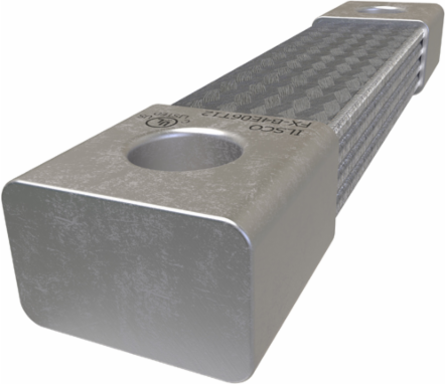

ILSCO FX-B4E06T12 Copper Flex Braid Connector, Conductor Equivalent Size 616, 4 Braids, 6in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL

Copper Flex Braid Connector, Conductor Equivalent Size 616, 4 Braids, 6in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
  • MPN: FX-B4E06T12
  • UPC: 783669008784
  • PPN: ILC-FX-B4E06T12

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$210.34/ EA

Description

Copper Flex Braid Connector, Conductor Equivalent Size 616, 4 Braids, 6in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL

Specifications

Dimensions

Dimension G (IN)
0.625
Height (mm)
20.32
Length of Ferrule (IN)
1.25
Mounting Bolt/Stud Size (mm)
304.8
Mounting Hole Diameter (mm)
14.224
Width (mm)
31.75
Dimension G (mm)15.875
Length (mm)152.4
Length of Ferrule (mm)31.75
Mounting Hole Diameter (IN)0.56
Thickness (mm)20.32

Testing Standards

Prop65 Compliance
This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS Specification
UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440

Additional Class Attributes

Circular Mils/Braid
672000
Number of Braids
4
Shape Of Conductor
Flat
Mounting Hole TypeThru
Number of Mounting Holes1

Material and Finish

Conductor Material
Copper
Material
Copper
Connector FinishTin

Conductor Ranges

Wire Equivalent
616 kcmil

Additional Technical Specifications

Connector Amperage Rating CU (Derated where applicable)
875 Amps
Conductor TypeBraid

General

Bag Quantity
1
Dual Rated
No
UPC Code
78366900878
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1

Specifications

Height
0.8 in | 20.32 mm
Weight
1.51882124628016 lbs
Length6 in | 152.4 mm
Width1.25 in | 31.75 mm

Bolt and Screw Sizes

Mounting Bolt/Stud Size
1/2
