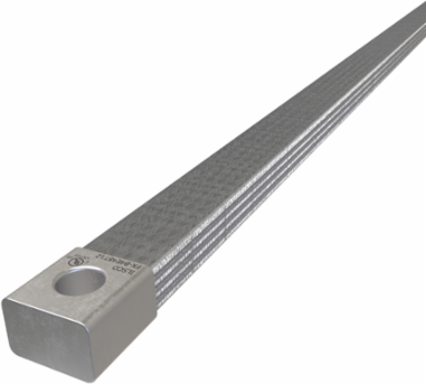

ILSCO FX-B4E48T12 Copper Flex Braid Connector, Conductor Equivalent Size 616, 4 Braids, 48in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
- MPN: FX-B4E48T12
- UPC: 783669007930
- PPN: ILC-FX-B4E48T12
CAD
$633.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 616, 4 Braids, 48in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.8 in | 20.32 mm
- Weight
- 11.7926599952941 lbs
Length48 in | 1219.2 mm
Width1.25 in | 31.75 mm
Dimensions
- Dimension G (IN)
- 0.625
- Height (mm)
- 20.32
- Length of Ferrule (IN)
- 1.25
- Mounting Bolt/Stud Size (mm)
- 304.8
- Mounting Hole Diameter (mm)
- 14.224
- Width (mm)
- 31.75
Dimension G (mm)15.875
Length (mm)1219.2
Length of Ferrule (mm)31.75
Mounting Hole Diameter (IN)0.56
Thickness (mm)20.32
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Circular Mils/Braid
- 672000
- Number of Braids
- 4
- Shape Of Conductor
- Flat
Mounting Hole TypeThru
Number of Mounting Holes1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Wire Equivalent
- 616 kcmil
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 875 Amps
Conductor TypeBraid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366900793
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
