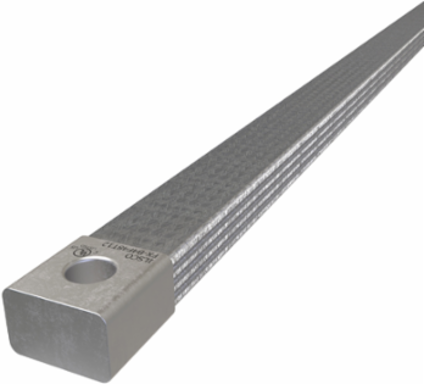

ILSCO FX-B4F48T12 Copper Flex Braid Connector, Conductor Equivalent Size 928, 4 Braids, 48in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
- MPN: FX-B4F48T12
- UPC: 783669008098
- PPN: ILC-FX-B4F48T12
CAD
$814.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Flex Braid Connector, Conductor Equivalent Size 928, 4 Braids, 48in, 1 Hole, 1/2in Bolt Size, Tin Plated, UL/cUL
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.87 in | 22.098 mm
- Weight
- 14.5212170489707 lbs
Length48 in | 1219.2 mm
Width1.38 in | 35.052 mm
Dimensions
- Dimension G (IN)
- 0.69
- Height (mm)
- 22.098
- Length of Ferrule (IN)
- 1.38
- Mounting Bolt/Stud Size (mm)
- 304.8
- Mounting Hole Diameter (mm)
- 14.224
- Width (mm)
- 35.052
Dimension G (mm)17.526
Length (mm)1219.2
Length of Ferrule (mm)35.052
Mounting Hole Diameter (IN)0.56
Thickness (mm)22.098
Testing Standards
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL/cUL 467 Listed
UL Control Number667P
UL File NumberE34440
Additional Class Attributes
- Circular Mils/Braid
- 921600
- Number of Braids
- 4
- Shape Of Conductor
- Flat
Mounting Hole TypeThru
Number of Mounting Holes1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Wire Equivalent
- 928 kcmil
Additional Technical Specifications
- Connector Amperage Rating CU (Derated where applicable)
- 1000 Amps
Conductor TypeBraid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366900809
Carton Quantity DescriptionSTD PACK QTY 1
NEMA Code0-000-1
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/2
