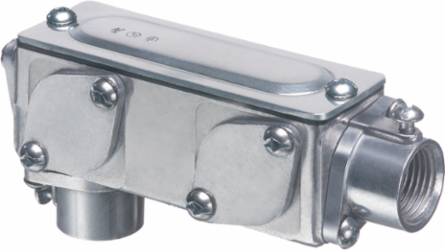

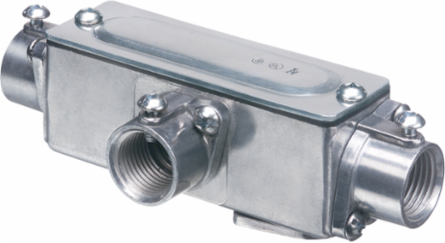

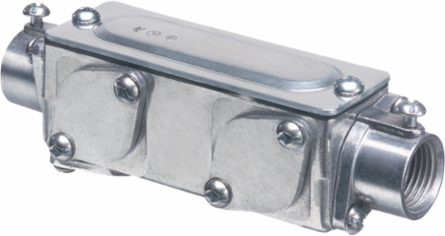

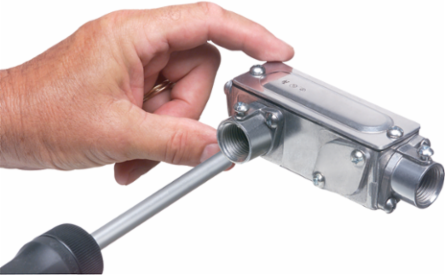

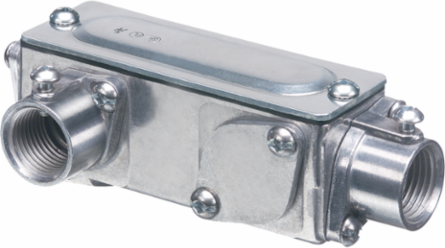

Arlington Industries 935 Copper free aluminum die-cast. five conduit bodies in one. Ships as an LB but converts to a T, LL, LR, or C. Combination threaded IMC or Rigid and set screw EMT. Trade Size 2"

  • MPN: 935
  • UPC: 018997179050
  • PPN: ARL-935

CAD

$185.97

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This versatile conduit body, designed by Arlington Industries, is a five-in-one solution that provides exceptional flexibility for a range of electrical installations. Originally configured as an LB, it can easily transform into a T, LL, LR, or C configuration to suit various wiring needs. Constructed from copper-free aluminum die-cast material, it ensures durability while accommodating combination threaded IMC or rigid conduit and set screw EMT applications, making it a reliable choice for professionals seeking efficiency and versatility in their projects. With a trade size of 2 inches, it seamlessly integrates into standard electrical systems, streamlining the installation process and enhancing connectivity options.

Documentation & Downloads

Specifications

Physical Information

Weight3.450 lbs/each
Width4.670"
Material(s)Copper-Free Aluminum
Height10.730"
ColorSilver

Technical Information

Conduit TypeThreaded IMC or Rigid and Set-Screw EMT
Trade Size2"
NEC ComplianceSection 314.16 (c) (2) of the 2014 NEC
Volume69.50 Cubic Inches

Basic Information

UPC018997179050
Standard Packaging5pcs
Unit Packaging1pc
ListingUL, CSA
Copper free aluminum die-cast. five conduit bodies in one. Ships as an LB but converts to a T, LL, LR, or C. Combination threaded IMC or Rigid and set screw EMT. Trade Size 2"
