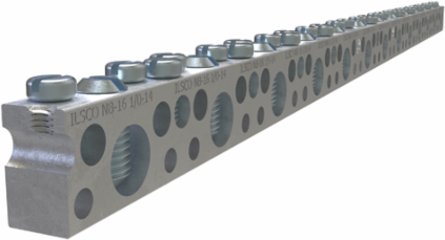

ILSCO NBCE-1336-2 Copper Neutral Bar, Large Conductor Range 1/0-14, Small Range 6-14, 13 Large Ports, 36 Small Ports, 2 Holes, #10 Bolt, UL, CSA
- MPN: NBCE-1336-2
- UPC: 783669005899
- PPN: ILC-NBCE-1336-2
CAD
$321.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Neutral Bar, Large Conductor Range 1/0-14, Small Range 6-14, 13 Large Ports, 36 Small Ports, 2 Holes, #10 Bolt, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.734 in | 18.6436 mm |
|---|---|
| Weight | 0.869 lbs |
| Length | 15.158 in | 385.0132 mm |
|---|---|
| Width | 0.375 in | 9.525 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 5.82 |
|---|---|
| Drive Type Main | Slotted |
| Height (mm) | 18.6436 |
| Mounting Bolt/Stud Size (mm) | 254 |
| Mounting Hole Diameter (mm) | 5.1562 |
| Mounting Hole Spacing (IN) | 2.344 |
| Weight BX (LB) | 18.332 |
| Width (mm) | 9.525 |
| Dimension G (mm) | 147.828 |
|---|---|
| Height BX (IN) | 8 |
| Length (mm) | 385.0132 |
| Mounting Hole Diameter (IN) | 0.203 |
| Mounting Hole Position (IN) | 20 & 28 |
| Mounting Hole Spacing (mm) | 59.5376 |
| Width BX (IN) | 6.5 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| UL / CULUS Specification | UL 467 Listed, UL 486A/B Recognized |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Conductors | 1 |
| Number of Poles | 1 |
| Mounting Hole Type | Thru |
|---|---|
| Number of Mounting Holes | 2 |
| Number of Ports Tap | 36 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Wire Binding Hardware Material | Steel |
| Connector Finish | Tin |
|---|---|
| Wire Binding Hardware Finish | Zinc Clear Trivalent Chromate |
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 1/0 Str - 14 Str |
| Conductor Range CU Solid (Secondary, tap, load) | 10 Sol - 14 Sol |
|---|---|
| Conductor Range CU Stranded (Secondary, tap, load) | 6 Str - 14 Str |
Additional Technical Specifications
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366900589 |
| Carton Quantity Description | STD PACK QTY 20 |
|---|---|
| NEMA Code | S-588-3 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | #10 |
|---|---|
| Wire Binding Screw Size | 5/16 |
| Number of Wire Binding Screws per Port | 1 |
|---|
Color
| Color | Silver |
|---|
