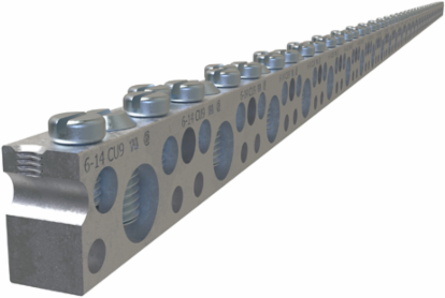

ILSCO NBCE-3192-0 Copper Neutral Bar, Large Conductor Range 1/0-14, Small Range 6-14, 31 Large Ports, 92 Small Ports, UL, CSA
- MPN: NBCE-3192-0
- UPC: 783669005905
- PPN: ILC-NBCE-3192-0
CAD
$800.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Neutral Bar, Large Conductor Range 1/0-14, Small Range 6-14, 31 Large Ports, 92 Small Ports, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.734 in | 18.6436 mm
- Weight
- 2.31133530414577 lbs
Length36.25 in | 920.75 mm
Width0.375 in | 9.525 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Drive Type Main
- Slotted
- Height (mm)
- 18.6436
- Mounting Bolt/Stud Size (mm)
- 254
- Width BX (IN)
- 2.5
Height BX (IN)2.5
Length (mm)920.75
Weight BX (LB)16.016
Width (mm)9.525
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Recognized
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Ports Tap
- 92
Mounting Hole TypeThru
Number of Poles1
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Steel
Connector FinishTin
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
Conductor Range CU Solid (Secondary, tap, load)10 Sol - 14 Sol
Conductor Range CU Stranded (Secondary, tap, load)6 Str - 14 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366900590
Carton Quantity DescriptionSTD PACK QTY 6
NEMA CodeS-588-3
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
- Wire Binding Screw Size
- 5/16
Number of Wire Binding Screws per Port1
Color
- Color
- Silver
