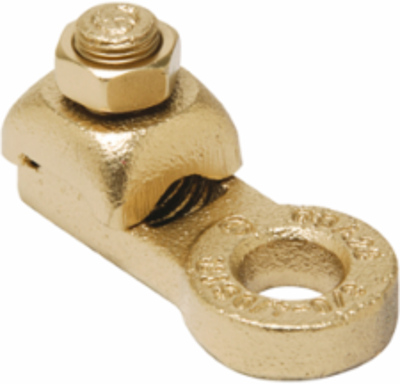

Burndy QDA34 Copper Terminal 1 Hole 400-500 kcmil 3/4 Inch Stud 1 Screw
- MPN: QDA34
- UPC: 781810325568
- PPN: BUR-358556
CAD
$468.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Terminal, 1 Hole, 400-500 kcmil, 3/4" Stud, 1 Screw.
Features

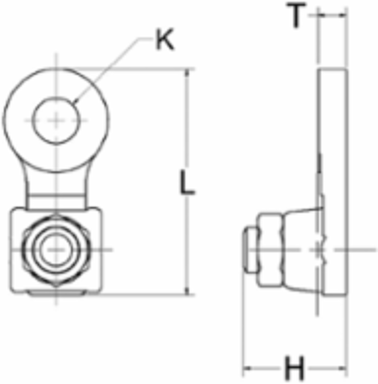

- Features: Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Studs, Provides Low Contact Resistance When Gripped Between Two Contact Nuts, One Wrench Installation, Dimension T: 5/16 IN, Stud/bolt Hole Size: 3/4 IN, Dimension K: 13/16 IN, Tongue Width: 1-7/8 IN, Conductor Type: Run: Navy, Commercial Stranded Copper, Height: 2 IN, Length: 3-5/8 IN, Installation Torque: 375 IN-LB
Documentation & Downloads
Specifications
Key Specifications
| Application | For Joining A Wide Range Of Copper Cable To Equipment Studs |
|---|---|
| Installation Torque Recommended in-lb | 375 LBS/in |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Trade Name | QIKLUG™ |
| UPC | 781810325568 |
| Dimension - Hole Size fraction | 13/16 |
| Dimension - Hole Size mm | 21 mm |
| Dimension - Length Overall inch | 3.63 in |
| Dimension - Stud Size inch | 3/4 |
| Dimension - Width mm | 48 mm |
| Conductor - Copper Str Navy Size Range | 400 (127) Navy-500 (127) Navy |
| Conductor - Copper Str Size Range | 400 kcmil-500 kcmil |
| Certification - ETL | No |
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
| Connector Type | Terminal |
|---|---|
| Material | Copper |
| Physical Attribute - Number of Screws | 1 |
| Plated | N |
| Sub Brand | QIKLUG |
| Type | Bolted Lugs & Terminals |
| Dimension - Height inch | 2.00 in |
| Dimension - Hole Size inch | 0.81 in |
| Dimension - L Length Overall mm | 97 mm |
| Dimension - Pad Width inch | 1.88 in |
| Dimension - Width inch | 1.88 in |
| Conductor - Copper Str Navy Size | 400 (127) Navy;500 (127) Navy |
| Conductor - Copper Str Size | 400 kcmil;450 kcmil;500 kcmil |
| Certification - CSA Approved | No |
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | EX |
