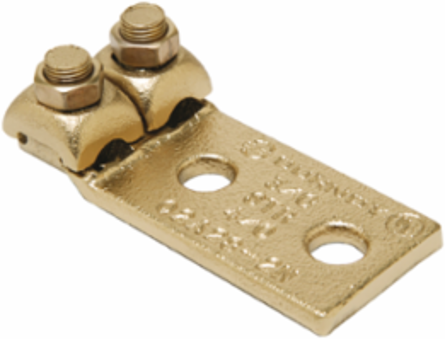

Burndy Q2A344N Copper 4-Hole Terminal for 400-500 kcmil Cables, 1/2 Inch Stud, 2 Screws
- MPN: Q2A344N
- UPC: 781810322208
- PPN: BUR-358220
CAD
$604.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Terminal, 4 Hole, 400-500 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, 2 Screws.
Features
- Features: Compact, high copper alloy terminal for joining two cables to equipment pads or bars, Each element accommodates a wide range of cable
Documentation & Downloads
Specifications
Additional
| Voltage | 600V Minimum |
|---|---|
| Installation Torque Recommended | 375 lbs/in |
| Conductor Type | Copper Stranded |
| Dimension B Length | 1.62 in |
| Width | 3.75 in (3-3/4 in) |
| Width Center to Center | 1.75 in |
| Hole Size | 0.56 in (9/16 in, 14 mm) |
| Stud Size | 1/2 in |
| Number of Screws | 2 |
| Connector Type | Terminal |
| Material | Copper |
| Plating Type | Unplated |
| RoHS Compliance Status | EX |
| Temperature Rating | 194 F |
|---|---|
| Conductor Size Range | 400-500 kcmil |
| Length Overall | 4.69 in |
| Dimension D | 3.09 in |
| Height | 2 in |
| Pad Width | 3.00 in |
| Dimension N | 0.63 in |
| Number of Holes | 4 |
| Screw Type | Hexagonal Bolt |
| Type | Bolted Lugs & Terminals |
| Plated | No |
| Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
