Burndy YA26LNT14 Copper Terminal Connector 2/0 AWG, 1/4 Inch Stud, Chamfered Barrel, 35 kV
- MPN: YA26LNT14
- UPC: 781810076613
- PPN: BUR-000814
CAD
$38.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression narrow tongue std barrel-Code conductor, Single hole/W/ insp window, 2/0 AWG, 600V-35Kv, 1/4" stud, Black, 13 index
Documentation & Downloads
Specifications

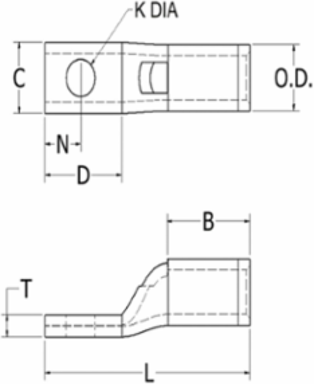

Dimensions
| Dimension - B Length fraction | 15/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 51 mm |
| Dimension - N inch | 0.25 in |
| Dimension - Pad Width inch | 0.48 in |
| Dimension - Stud Size inch | 1/4 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 0.94 in |
|---|---|
| Dimension - D inch | 0.59 in |
| Dimension - Length Overall inch | 2.02 in |
| Dimension - Outside Diameter inch | 0.56 in |
| Dimension - Strip Length inch | 1 in |
| Dimension - Z inch | 0.34 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Navy Size Range | 125 (61) Navy |
| Conductor - Copper Str Size Range | 2/0 AWG |
| Conductor - Copper Str Navy Size | 125 (61) Navy |
|---|---|
| Conductor - Copper Str Size | 2/0 AWG |
General
| Color Code | Black |
|---|---|
| Die Index | 13 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin - Electro Plated |
| UPC | 781810076613 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plated | Y |
| Trade Name | HYLUG™ |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 10 |
|---|
