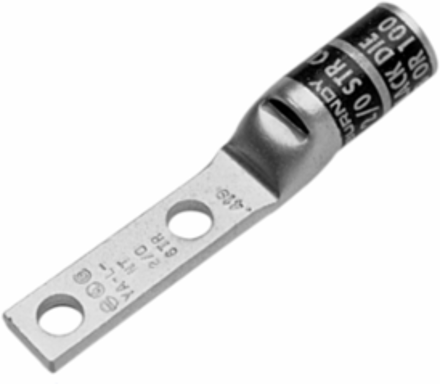

Burndy YA27L2NT516 Copper Terminal Connector, 3/0 AWG, 5/16 Inch Stud, 2 Holes, Tin Plated
- MPN: YA27L2NT516
- UPC: 781810498064
- PPN: BUR-10108457
CAD
$63.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Tubing,Narrow,Double Hole /W/ insp window,3/0 AWG,5/16"stud, Tin plated,Orange,14 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - D inch
- 1.73 in
- Dimension - Length Overall inch
- 3.26 in
- Dimension - Outside Diameter inch
- 0.62 in
- Dimension - Strip Length inch
- 1-1/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.00 in
Dimension - Bolt Size fraction5/16
Dimension - L Length Overall mm83 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.60 in
Dimension - Stud Size inch5/16
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size
- 3/0 AWG
Conductor - Copper Solid Size3/0 AWG
General
- Color Code
- Orange
- Die Index
- 14
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
UPC781810498064
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
