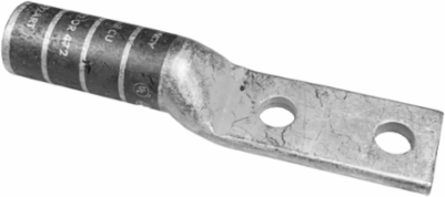

Burndy YA282NT14 Copper Terminal Connector, 4/0 AWG, 0.76 Inch Pad Width, Tin Plated
- MPN: YA282NT14
- UPC: 781810672679
- PPN: BUR-50043685
CAD
$41.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Tubing,2 Holes W/O insp window,4/0 AWG,1/4"stud,Tin plated,200 Navy,15 index,Purple
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-5/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 87 mm
- Dimension - Outside Diameter inch
- 0.69 in
- Dimension - Strip Length inch
- 1-11/16 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.62 in
Dimension - Bolt Size fraction1/4
Dimension - Length Overall inch3.42 in
Dimension - Pad Width inch0.76 in
Dimension - Stud Size inch1/4 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- UL Listed
- Yes
Standards - RoHS Compliance StatusCM
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size
- 4/0
Conductor - Copper Str Navy Size200 (61)
Conductor - Copper Str Size Range4/0
General
- Color Code
- Purple
- Die Index
- 15
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
Connector TypeTerminal
Feature - Barrel StyleChamfered
Physical Attribute - Number of Holes2
Plating TypeTin
UPC781810672679
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
