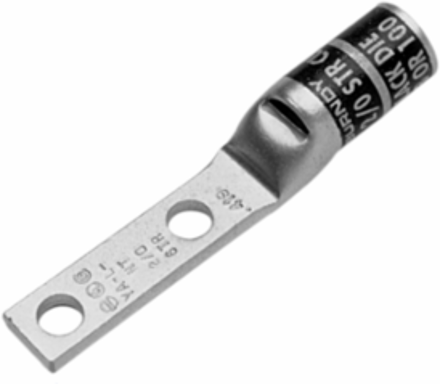

Burndy YA2CL2NT14E2 Copper Terminal Connector, 2 AWG, 1/4 Inch Stud, 600V-35kV, Chamfered Barrel
- MPN: YA2CL2NT14E2
- UPC: 781810168318
- PPN: BUR-25014139
CAD
$29.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression narrow toungue std barrel-Code conductor, 2 holes/W/ insp window, #2 AWG, 600V-35Kv, 1/4" stud, Brown, 10 index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 7/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 66 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.48 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.88 in
Dimension - D inch1.39 in
Dimension - Length Overall inch2.60 in
Dimension - Outside Diameter inch0.42 in
Dimension - Strip Length inch15/16
Dimension - Z inch0.33 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 2 AWG
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 60 (37) Navy
- Conductor - Copper Str Size Range
- 2 AWG
Conductor - AL Str Size Range2 AWG
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - Copper Str Size2 AWG
General
- Application
- For Use On: UL Listed 90 DEG C, 600 Volts to 35 kV
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG,TERMINALS
- Type
- YA-L-2NT, Standard Barrel
Color CodeBrown
Die Index10
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810168318
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
