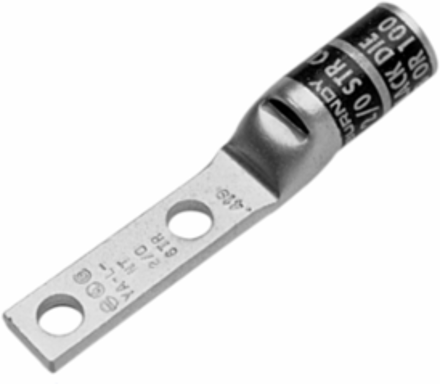

Burndy YA34L2NT38E16 Copper Terminal Connector, 2 Holes, 500 kcmil, 3/8 Inch Stud
- MPN: YA34L2NT38E16
- UPC: 781810498149
- PPN: BUR-10108464
CAD
$168.97
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flex Conductor Standard Barrel Narrow,2 Holes /W/ insp window, 500 kcmil, 3/8" stud,Brown,Tin Plated
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/4 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - D inch | 2.58 in |
| Dimension - Length Overall inch | 4.63 in |
| Dimension - Outside Diameter inch | 1.06 in |
| Dimension - Strip Length inch | 1-7/16 |
| Dimension - Z inch | 0.42 in |
| Dimension - B Length inch | 1.27 in |
|---|---|
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - L Length Overall mm | 118 mm |
| Dimension - N inch | 0.41 in |
| Dimension - Pad Width inch | 0.96 in |
| Dimension - Stud Size inch | 3/8 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Size Range | 500 kcmil |
| Conductor - Copper Str Size | 500 kcmil |
|---|
General
| Color Code | Brown |
|---|---|
| Die Index | 20;22 |
| Material | Copper |
| Plated | Y |
| Trade Name | HYLUG™ |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin |
| UPC | 781810498149 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
