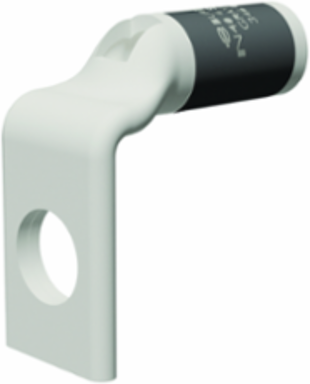

Burndy YA4CL690 Copper Terminal Connector #4 AWG, 1/2 Inch Stud, Gray, Electro-Tin Plated

MPN: YA4CL690
UPC: 781810167397
PPN: BUR-25012756

$29.29

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu code conductor standard barrel, Single hole/W/ insp window, #4 AWG, 40 Navy, 1/2" stud, Electro-Tin plated, Gray, 8 or 346 index, 90 Degree Bend

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	13/16 in
Dimension - Bolt Hole Size inch	0.52 in
Dimension - Height inch	1.19 in
Dimension - L Length Overall mm	34 mm
Dimension - N inch	0.53 in
Dimension - Pad Width inch	0.71 in
Dimension - Stud Size inch	1/2
Physical Attribute - Tongue Angle	90 Degree

Dimension - B Length inch	0.81 in
Dimension - D inch	1.08 in
Dimension - Hole Size mm	13 mm
Dimension - Length Overall inch	1.32 in
Dimension - Outside Diameter inch	0.34 in
Dimension - Strip Length inch	7/8
Dimension - Z inch	0.55 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Industry Standard(s)	UL467
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
Standards - Industry Standards Met	UL467
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Navy Size Range	40 (19) Navy
Conductor - Copper Str Size Range	4 AWG

Conductor - Copper Str Navy Size	40 (19) Navy
Conductor - Copper Str Size	4 AWG
Conductor - Material	Copper

General

Color Code	Gray
Die Index	8;346
Material	Copper
Plated	Y
Trade Name	HYLUG™
UPC	781810167397

Connector Type	Terminal
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	1
Plating Type	Tin - Electro Plated
Type	Standard Barrel, Tin Plated
