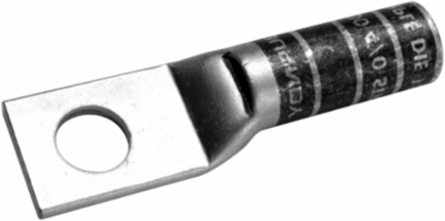

Burndy YAZV28NT38FX Copper Terminal Connector, 4/0 AWG, 35 kV, 3/8 Inch Stud, Purple
- MPN: YAZV28NT38FX
- UPC: 781810241646
- PPN: BUR-25020539
CAD
$52.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression long barrel-Flex conductor, Single hole W/ insp window, 550/24.4/0 weld.4/0AWG, 600 V-35 kV, 3/8" stud, Purple, 15 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-5/8 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - L Length Overall mm
- 76 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.94 in
- Dimension - Stud Size inch
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.62 in
Dimension - Bolt Size fraction3/8
Dimension - Length Overall inch3.01 in
Dimension - Outside Diameter inch0.77 in
Dimension - Strip Length inch1-11/16
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 4/0 (550/#24)
- Conductor - Copper Flex H Size
- 4/0
- Conductor - Copper Flex K Size
- 4/0
- Conductor - Copper Str Size
- 4/0
- Conductor - CopperWeld Str Size
- 4/0 E;4/0 EK;4/0 F;4/0 G;4/0 V
Conductor - Copper Flex G Size4/0
Conductor - Copper Flex I Size4/0
Conductor - Copper Flex M Size4/0
Conductor - Copper Str Size Range4/0
General
- Color Code
- Purple
- Die Index
- 15
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- UPC
- 781810241646
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedY
Trade NameHYLUG™
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 10
